SPECIAL ORDER ITEM

Approximate Lead Time: 8-12 weeks.
Deposit Required: 20% not including freight.

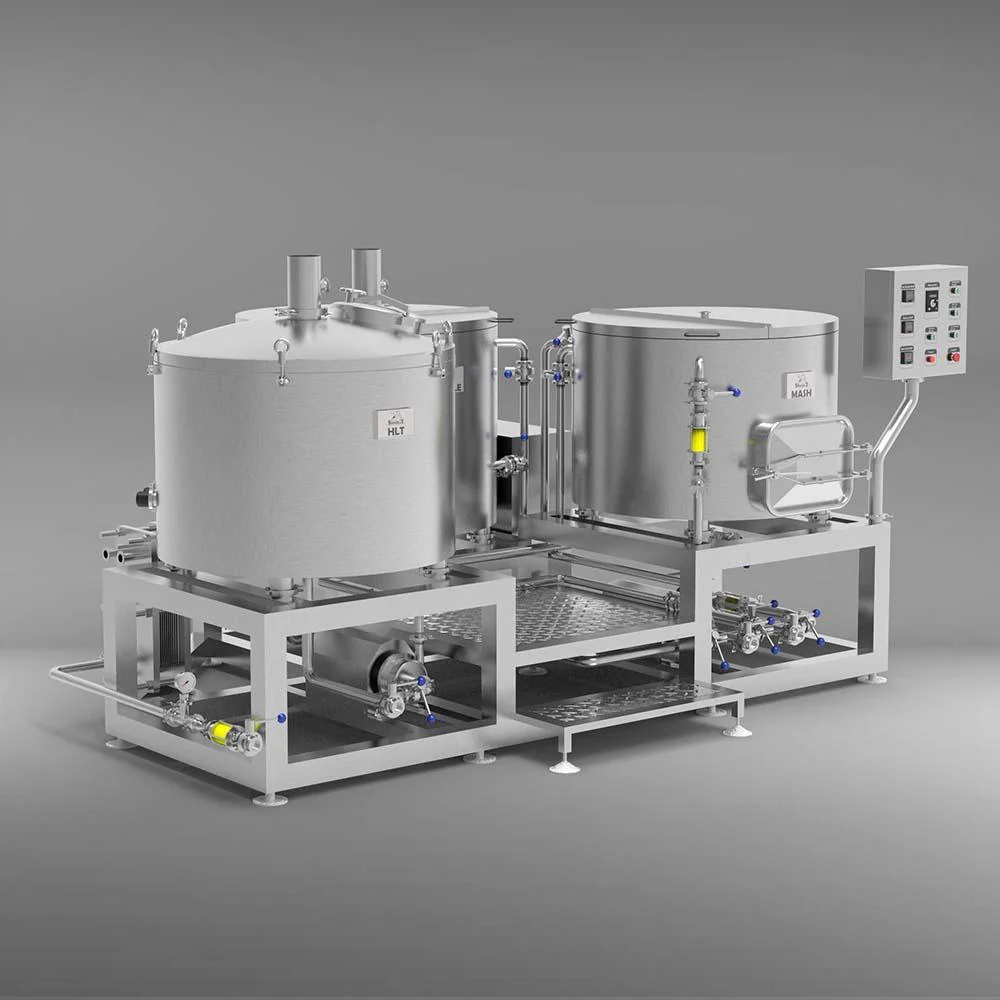

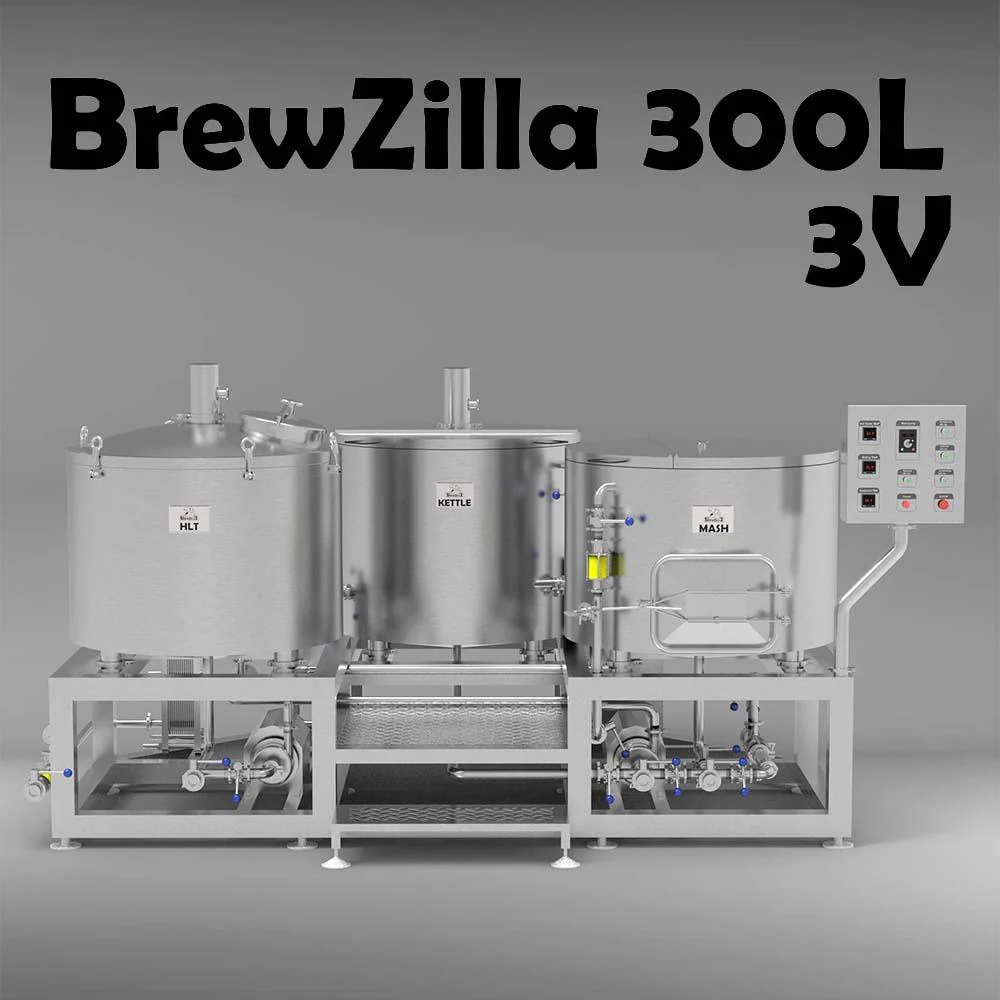

The BrewZilla 300L - 3 Vessel Brewery is a premium brewery that comes fully inclusive with pumps, plate chiller, controllers, and internal plumbing.

Unlike other brewery types that are made from repurposed cooking pots, this 300L system has been purpose-built with cone-shaped tanks so they drain out completely, work well with CIP cleaning and improve efficiencies in the brewhouse.

This brewery comes standard with a CIP spray ball for ease of cleaning. The CIP spray ball easily fits to the boiler lid and then the lid assembly can be seamlessly switched to the HLT and Mash tun to clean these vessels after your brewday.

The control panel on the brewery gives you a high level of accurate temperature control so you can hit mash temperatures exactly and achieve extreme brewing consistency.

The mash tun door and grain chute makes it very easy to clean out the mash tun directly into a wheelbarrow or waste bin.

The low-watt density elements will enable you to brew even very high gravity beers without the risk of scorching.

The included plate chiller is one that can be disassembled for easy and thorough cleaning and comes included in the package.

The pump is a high chemically resistant pump that is not only suitable for pumping boiling hot wort at high duty cycle but also for pumping strong acids and caustic substances that are regularly used in the brewing industry.

We have also designed the kettle with a 4inch tri-clover chimney. This enables you to fit the 4inch range of bubble capper pot and reflux stills that we have available.

This unit comes as standard with a heavy duty mash paddle to assist with getting rid of those dough balls. It is also possible to use this to assist in scooping grain from the mash tun making it a multi-purpose tool.

So if you are looking for a very capable, powerful and professionally built brewery forget about the other toys that you see out there and get the BrewZilla 300L.

Want to know the size? Download the drawings for this brewery here.

This 300L brewery comes included with a single stage plate heat exchanger that has 3m^2 surface area so you knock down the temperature of your wort fast.

Features

Mash Tun Effective volume: 300L (Max Volume 380L)
Kettle Effective Volume: 300L (Max Volume 500L)
HLT: Effective Volume: 300L (Max Volume 380L)
PID control
Low watt density elements
Grain chute, CIP Spray Ball and heavy duty mash paddle included as standard

More specifications and features can be found in the BrewZilla 300L Product Manual

Power Consumption
The BrewZilla 300L is 50kw excluding the RIMS. If you want the RIMS heater this is an additional 5kw.

Other Accessories Purchased Separately

KL22996 - 6kw RIMS Heater - Primarily designed to maintain or raise temperature of your mash tun. This tri-clover powerful addition will also significantly increase your heat-up times enabling you to add an additional 6kw of power into the system for heating water or getting to a boil faster.
