The Story
The Sanitary Sight Glasses are designed for sanitary applications used in the food, dairy, and pharmaceutical industries.
Full bore design, Sight Glass Flow Indicators provides a full 360 to observe fluid flow in any direction. Can be used in vertical or horizontal position

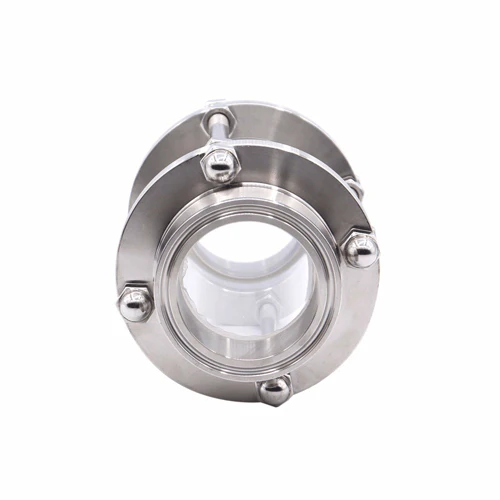

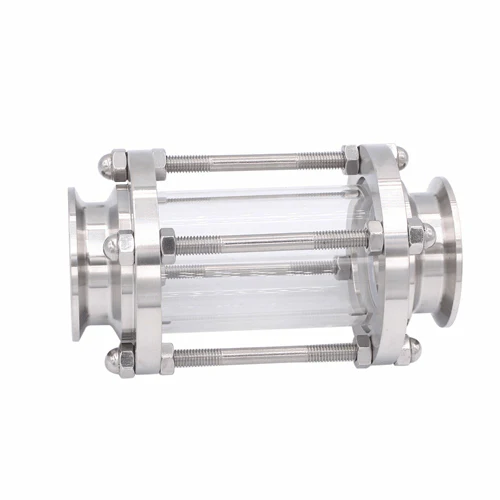

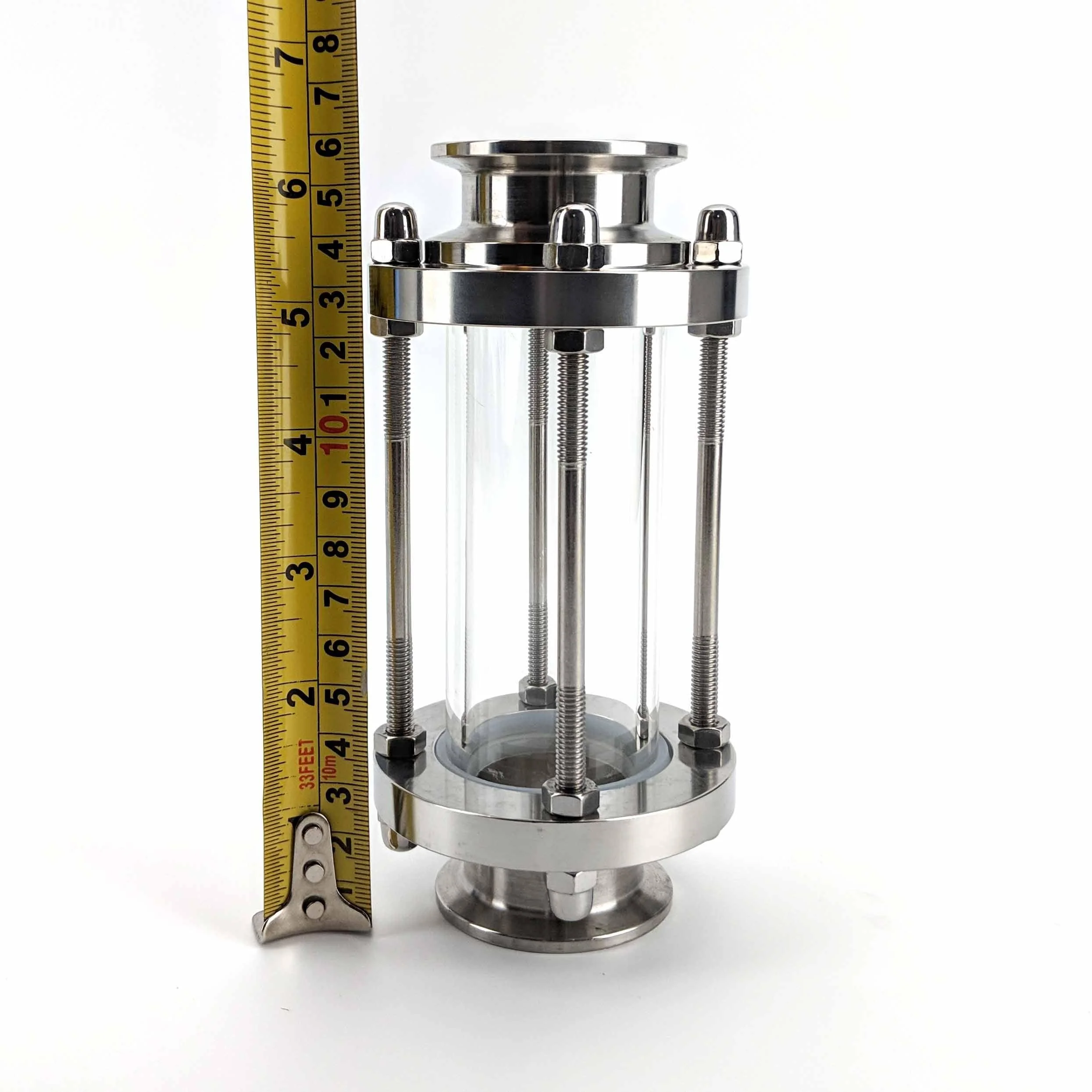

1.5 Inch Tri Clover - Sanitary Sight Glass
The Sanitary Sight Glasses are designed for sanitary applications used in the food, dairy, and pharmaceutical industries.
Full bore design, Sight Glass Flow Indicators provides a full 360 to observe fluid flow in any direction. Can be used in vertical or horizontal position
Features:
-Â In-light Sight Glass Flow Pipe OD:38MM, Ferrule OD:50.5MM
- Max Pressure: 120 PSI,
- Max Temperature: 150C
- Tri-clamp size: 1.5inchÂ
- Glass: Tempered Glass
- SUS316 Grade Stainless Steel
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Sanitary Sight Glasses are designed for sanitary applications used in the food, dairy, and pharmaceutical industries.
Full bore design, Sight Glass Flow Indicators provides a full 360 to observe fluid flow in any direction. Can be used in vertical or horizontal position
1.5 Inch Tri Clover - Sanitary Sight Glass
The Sanitary Sight Glasses are designed for sanitary applications used in the food, dairy, and pharmaceutical industries.
Full bore design, Sight Glass Flow Indicators provides a full 360 to observe fluid flow in any direction. Can be used in vertical or horizontal position
Features:
-Â In-light Sight Glass Flow Pipe OD:38MM, Ferrule OD:50.5MM
- Max Pressure: 120 PSI,
- Max Temperature: 150C
- Tri-clamp size: 1.5inchÂ
- Glass: Tempered Glass
- SUS316 Grade Stainless Steel
