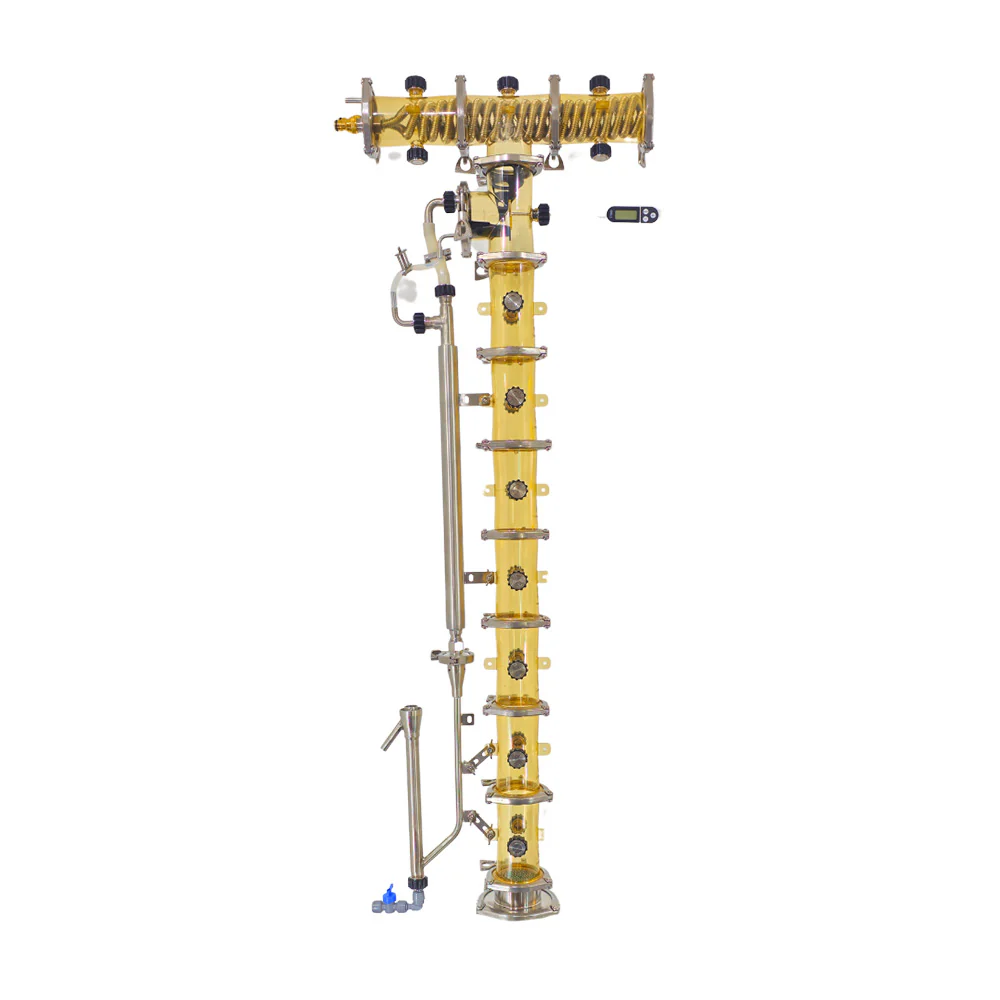

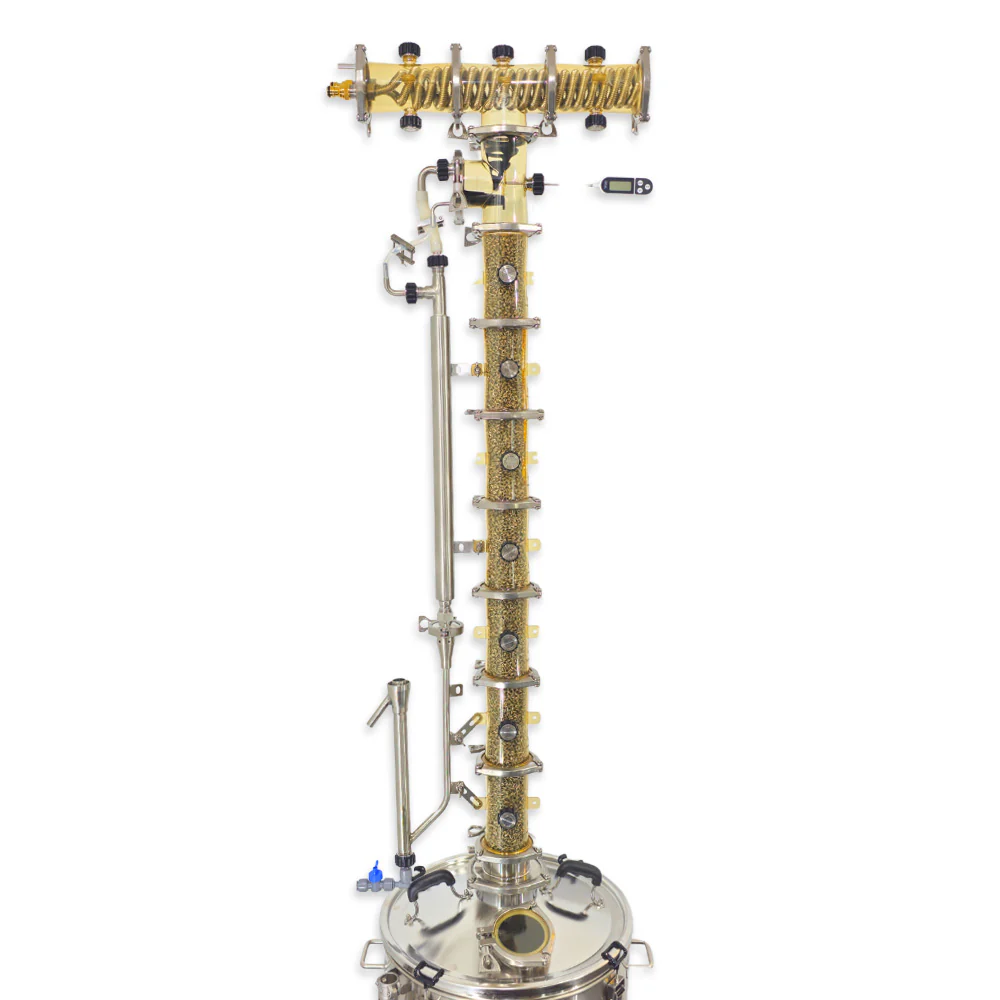

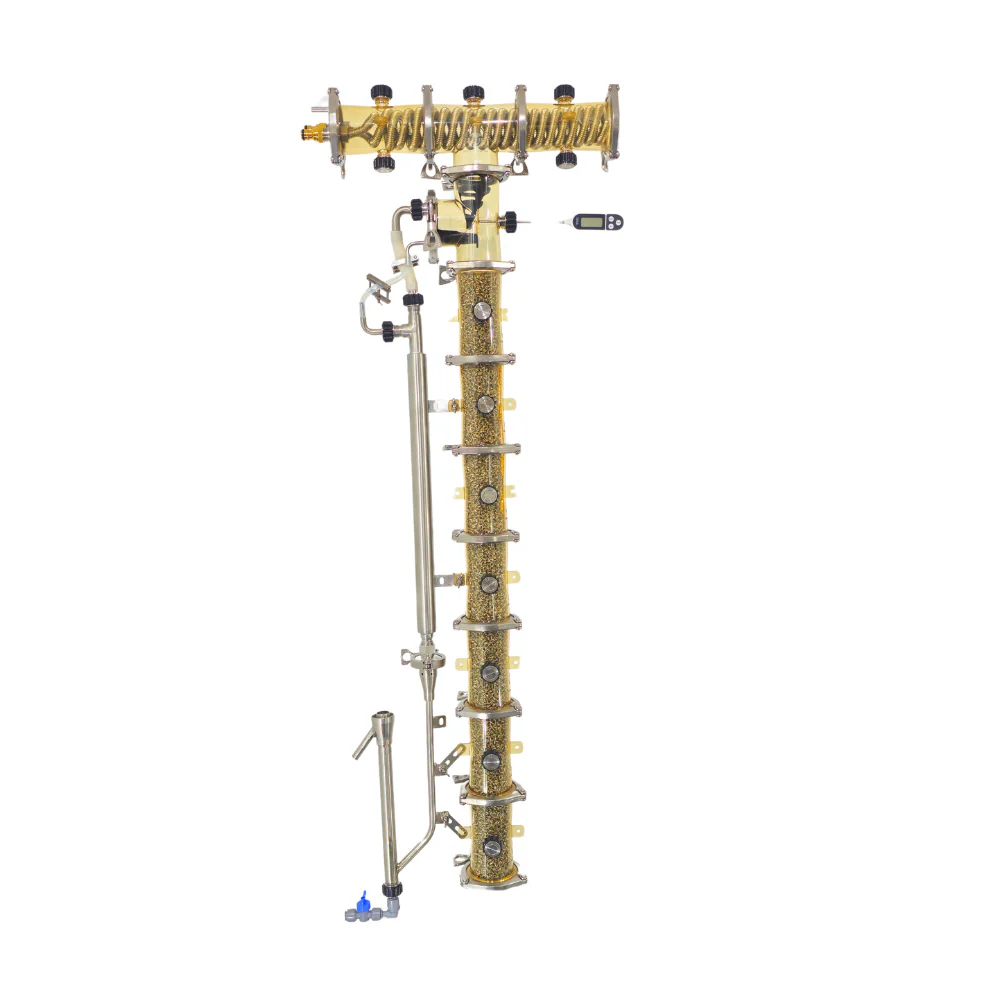

3' PolyPhoenix N-7 Azeo Vodka Reflux Still

The PolyPhoenix N-7 Azeo Vodka Reflux Still is an all-in-one solution for easy azeotropic distillation - this is the very best way to ensure you get the cleanest, highest purity neutral spirit. 7 Straight Extensions filled with high quality SPP (Spiral Prismatic Packing) ensure you will collect nothin but the purest possible neutral spirit.

The SPP can also be removed from the column if you want to convert this to a Pot Still. FOr example, make neutral spirit first, then remove the packing and run the sprit (after dilution) back through along with your botanicals to make delicious gin! (We would add a Gin Basket or two to make this easy)

By default this particular kit comes with:
1 x KL39031 - PolyPhoenix - Modular Hammerhead / Vertical Condenser - PPSU 3 Inch TC
1 x KL43793 - PolyPhoenix - Undertaker Collector Tee Kit G2 - PPSU 3 Inch TC
1 x KL37976 - PolyPhoenix - 4kW Straight Liebig / Shotgun Condenser
1 x KL43298 - Quick Swivel Connector 1/2' x 18mm Straight Barb
7 x KL36979 - PolyPhoenix - Straight Extension - PPSU 3 Inch TC
14 x KL39567 - Quick Swivel Connector 1/2' x Stainless Steel End Cap (18mm)
7 x KL25799 - 3 Inch TC Clamp - 3 Segments
1 x KL8868 - 3 Inch TC Stainless Mesh Screen PTFE (Teflon & 7 mesh)
7 x KL25805 - 3 Inch TC Beaded Seal - Silicone
4 x KL09461 - Garden Hose Male Quick Connect Coupling 1/2 inch Female
1 x KL39024 - PolyPhoenix - Adjustable Distillation Parrot with 1.5' TC Input
1 x KL01878 - 1.5 Inch TC Clamp - 2 Segments
1 x KL01861 - 1.5 Inch TC Beaded Seal - Silicone
2 x KL31677 - KegLand Quick Swivel Connector 1/2' x 6.35mm (1/4') Elbow Barb (duotight compatible)
1 x KL21951 - Monotight - 6.35mm(1/4inch) Ball Valve
1 x KL04305 - Alcometer (0-100%)
2 x KL27427 - M6 x 14mm - Stainless Wing Nut and Wing Bolt (set of 4)
1 x KL39574 - S2 - PolyPhoenix Support Bracket - Straight 2 (4 Pack)

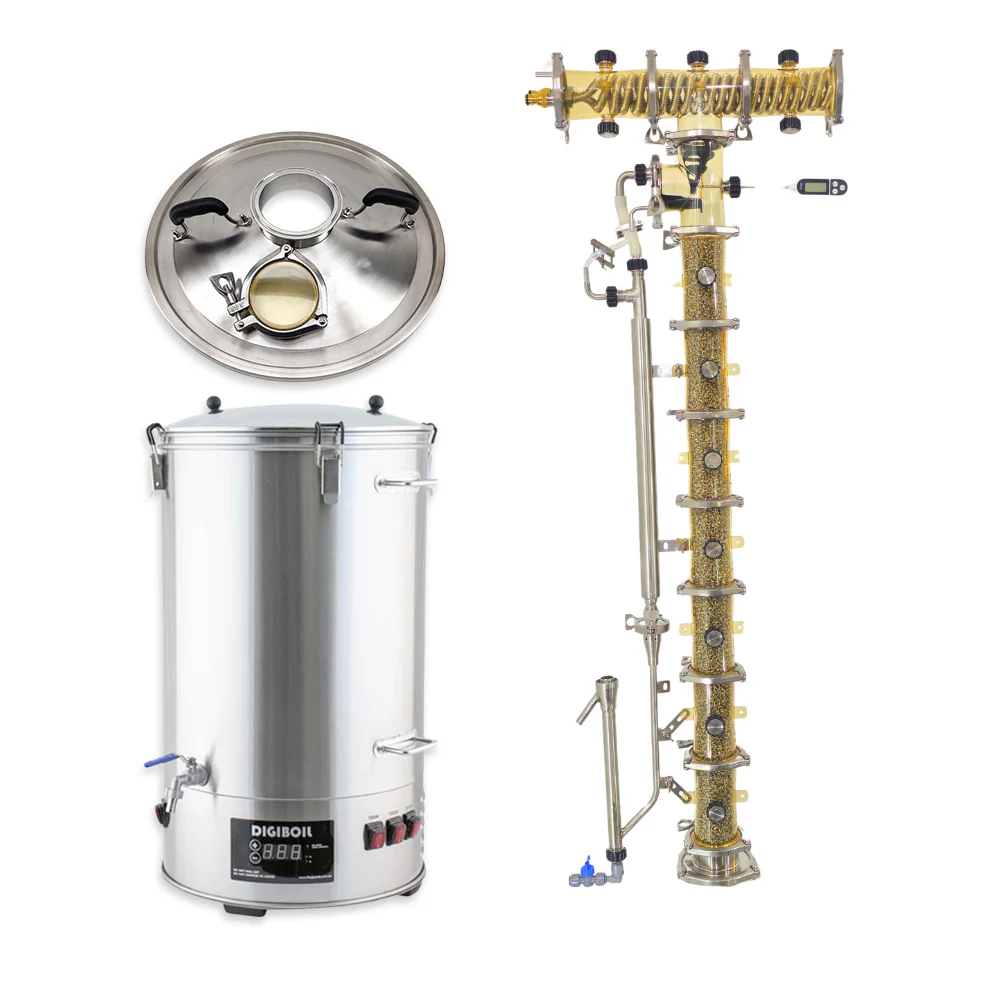

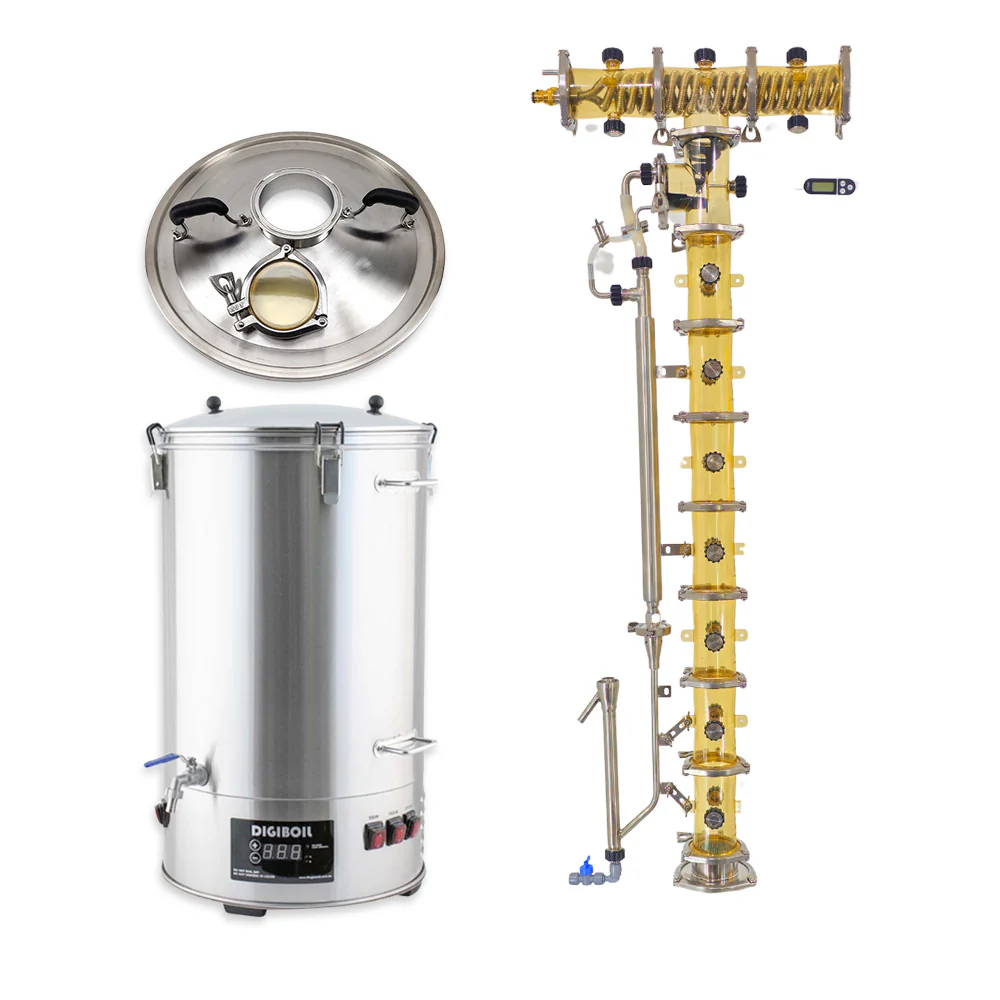

65L DigiBoil Option:
1 x KL07313 - DigiBoil 65L - 3500watt - Digital 220-240V
1 x KL30649 - BrewZilla + DigiBoil S.S Adjustable Lid Clamps - Short (4pcs/set)
1 x KL25829 - BrewZilla 65L Pro Sight Glass Distillation / Steam Condenser Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
1 x KL26185 - 3 Inch to 4 Inch TC Stainless Steel Reducer
1 x KL32902 - 4 Inch TC Clamp - 3 Segments
1 x KL04602 - 4 Inch TC Beaded Seal - Silicone

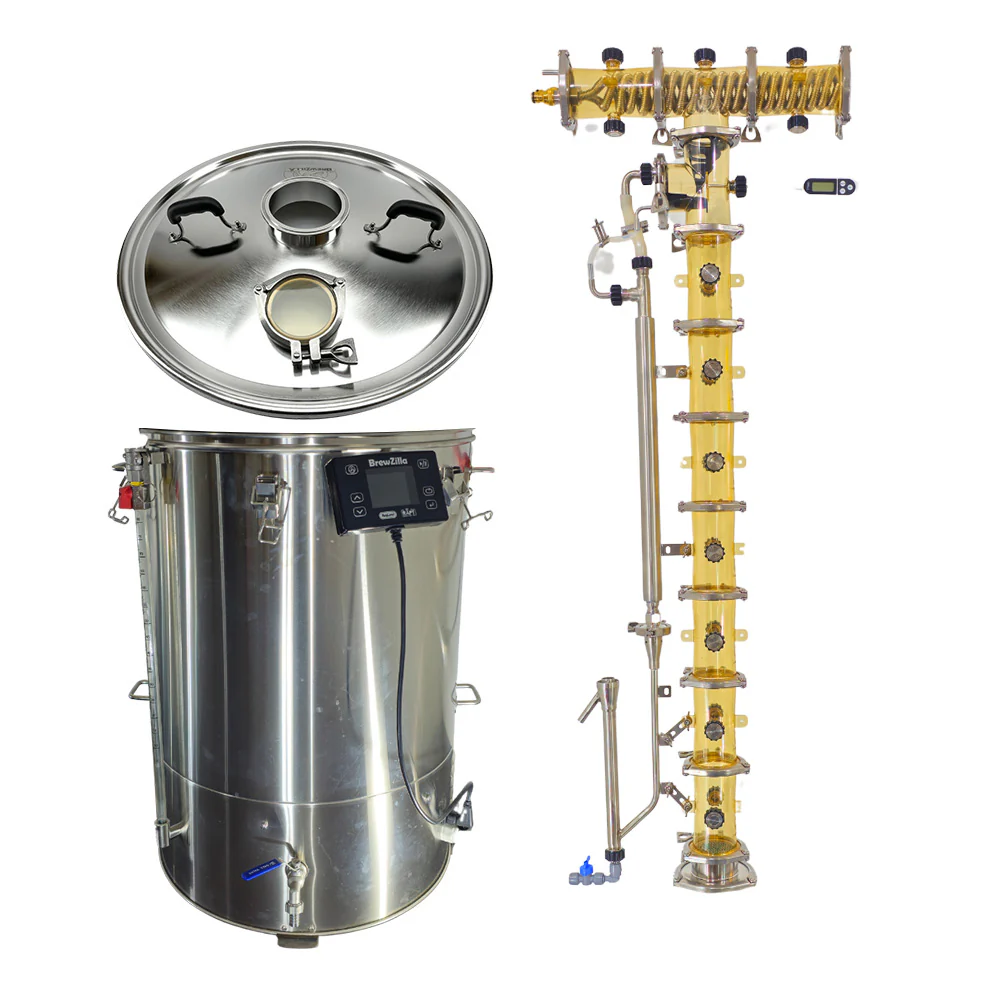

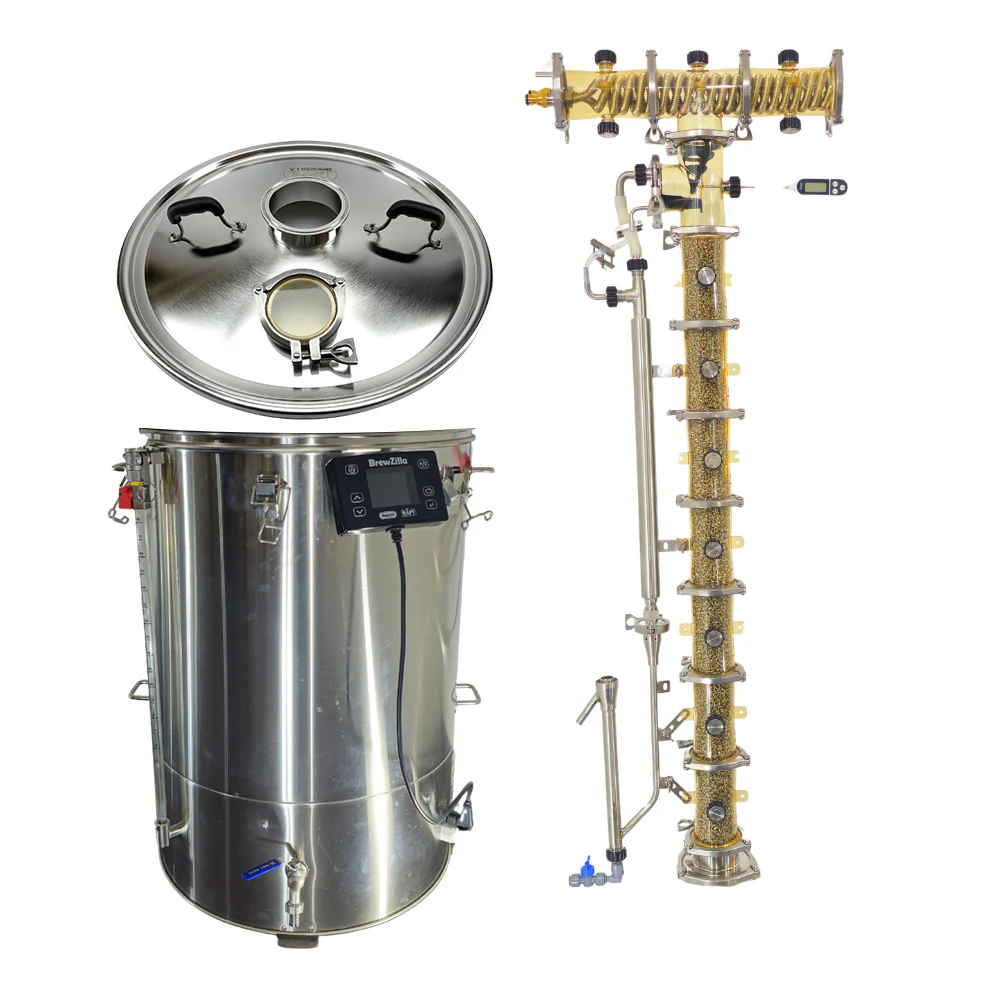

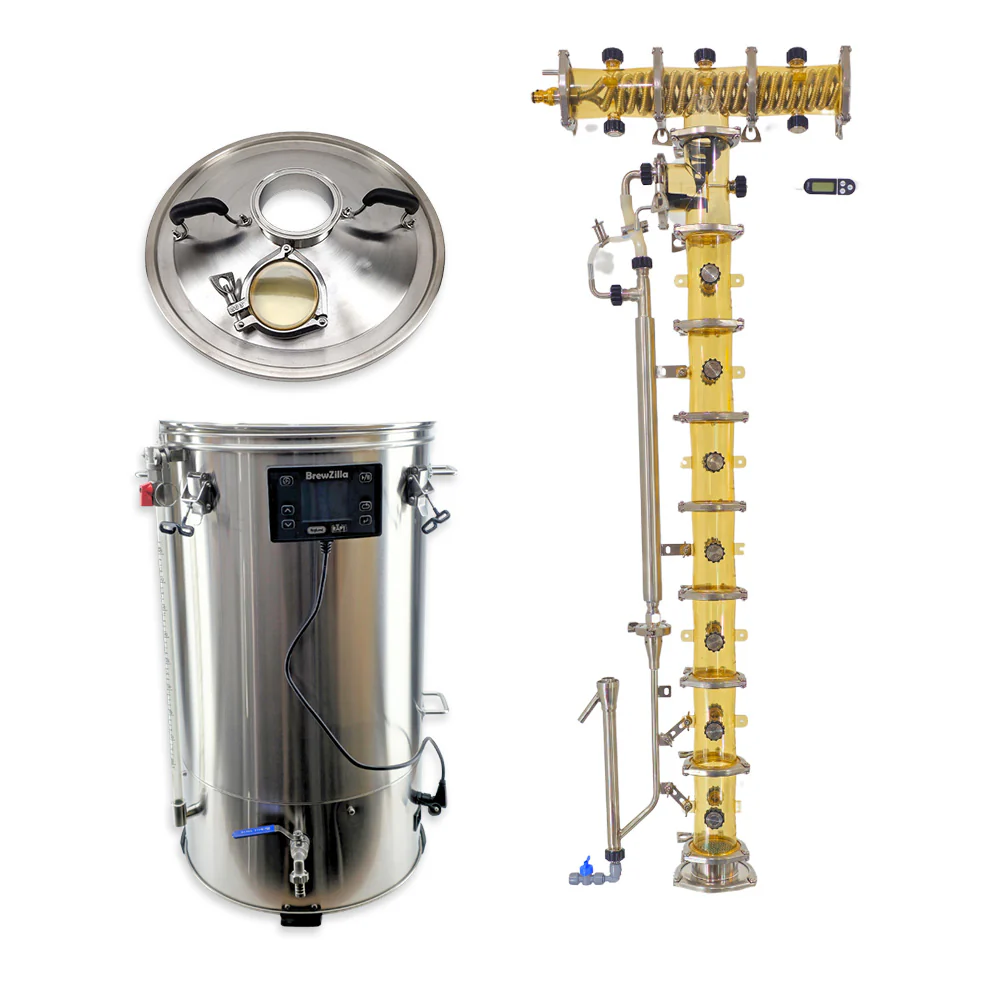

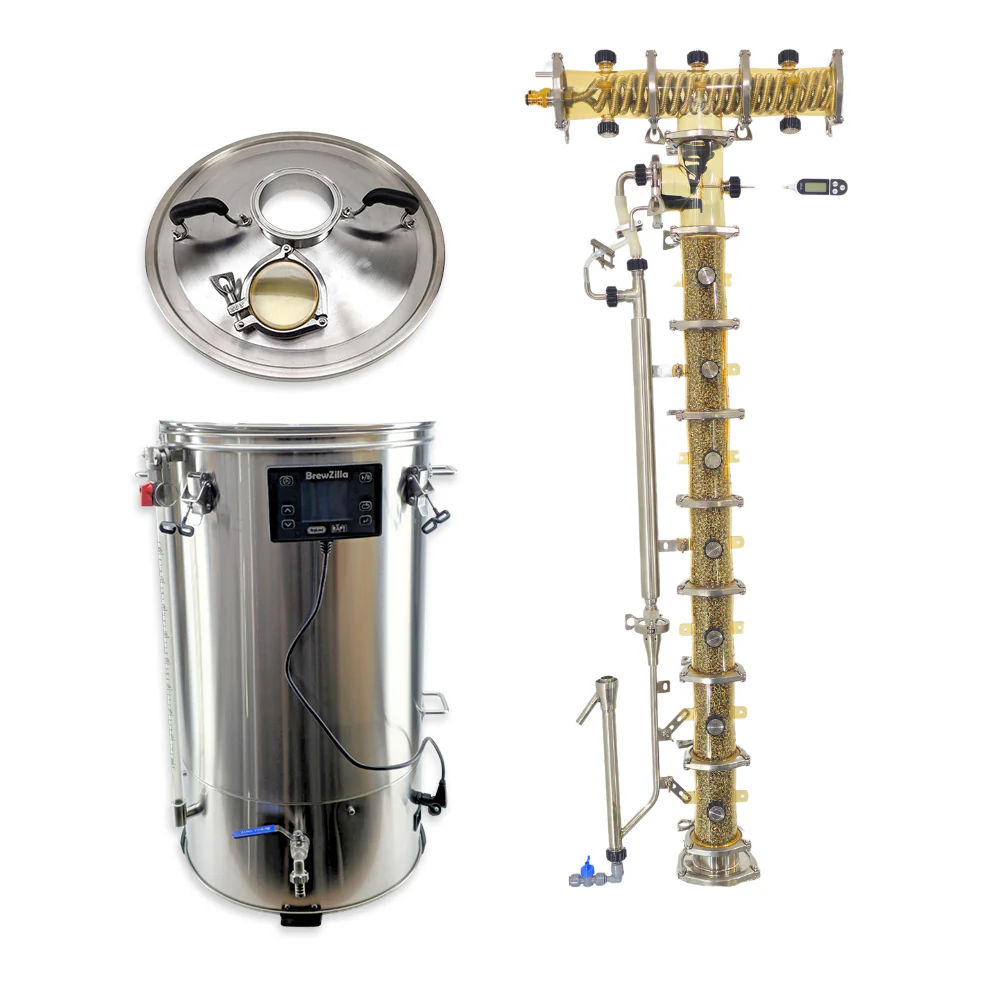

65L BrewZilla Gen 4 Option:
1 x KL27458 - 65L BrewZilla Gen 4.1 with 25w Pump 2000w/1000/500w - 220-240V AC
1 x KL25829 - BrewZilla 65L Pro Sight Glass Distillation / Steam Condenser Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
1 x KL26185 - 3 Inch to 4 Inch TC Stainless Steel Reducer
1 x KL32902 - 4 Inch TC Clamp - 3 Segments
1 x KL04602 - 4 Inch TC Beaded Seal - Silicone

100L BrewZilla Gen 4 Option:
1 x KL27465 - 100L BrewZilla Gen 4 with 25w Pump 2200w/2200/2200w - 220-240V AC
1 x KL25836 - BrewZilla 100L Pro Sight Glass Distillation / Steam Condenser Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
1 x KL26185 - 3 Inch to 4 Inch TC Stainless Steel Reducer
1 x KL32902 - 4 Inch TC Clamp - 3 Segments
1 x KL04602 - 4 Inch TC Beaded Seal - Silicone

About PolyPhoenix

The PolyPhoenix modular distillation range are primarily made out of a material called PPSU.
This material is 100% safe with hot alcohol vapour that will not leech any chemicals into your product.

PPSU is an excellent choice for components that are exposed to high temperatures (up to 200°C) and corrosive media due to its exceptional chemical resistance. As well as being extremely impact resistant.
We have decided to use this type of plastic because it also has superior thermal and mechanical properties with the added benefit of being transparent. This will allow us to injection mold intricate parts that would have been near impossible to do in stainless steel or lab-grade glass. Because this is a very unique type of plastic, it comes at a much higher cost per kg than other industrial plastics. So much so that it costs more than stainless steel.

The PolyPhoenix Condenser can be used in multiple configurations for your distillation set up. Most commonly it is used in the hammerhead configuration (horizontal). But it can also be used Vertically with some quick adjustments to the 3" TC housings.
