3" PolyPhoenix Pot Stripping Runner Kit

It's definitely worth it to do stripping runs. We believe you get a much better product and can make better cuts when you do a final spirit run with your low wines you've collected.
It's definitely a larger commitment to strip distill multiple times if you have a large wash. But we think it's a necessary part of the craft to get a better final product with less unwanted flavours in the end.

This kit uses a PolyPhoenix Tee as the basic head for your pot still. You'll have a wider view of what's happening in your still!

The purpose of a short pot still is to reduce any chance of a reflux ratio. You just want to rip it and strip it. Gather as much low wines from your wash as possible then perform a final spirit run on a bubbler plate still if you're distilling a Whiskey, Rum or Brandy (WRB). Or if you're making neutral alcohol (Vodka) for drinking or Gins / Adding flavour afterwards, then you would use a Reflux Tower Still.


Liebig Condenser Dimensions:
Overall length including 1/2" NPT Fittings = 500mm
Outer tubing OD: 32mm
Inner tubing OD: 22mm
Fittings: 1/2" NPT

Capabilities:
Wattage Limit: 4000 watts
With 20°C coolant water at rate of 3.5L per minute exiting the condenser.
The colder the water, the higher the wattage rating.

This Kit Includes:
KL37976    PolyPhoenix - Straight Liebig / Shotgun Condenser
KL36962    PolyPhoenix - Tee Piece - PPSU 3 Inch TC
KL31547    KegLand Quick Swivel Connector 1/2' Nut With Silicone Grip Only
KL31646    Stainless Steel End Cap Only (18mm) for KegLand Quick Swivel Connector 1/2'
KL31585    13mm (1/2') Straight Barb Only for KegLand Quick Swivel Connector 1/2'
KL25799    3 Inch TC Clamp - 3 Segments
KL25805    3 Inch TC Beaded Seal - Silicone
KL22071    3 Inch TC PPSU Sight Glass / End Plate
KL29469    3 Inch TC to 1.5 Inch TC Reducing Elbow
KL01878    1.5 Inch TC Clamp - 2 Segments
KL01861    1.5 Inch TC Beaded Seal - Silicone
KL25362    1.5 Inch TC with 1/2 Female Thread (BSP)
KL09461    Garden Hose Male Quick Connect Coupling 1/2 inch Female

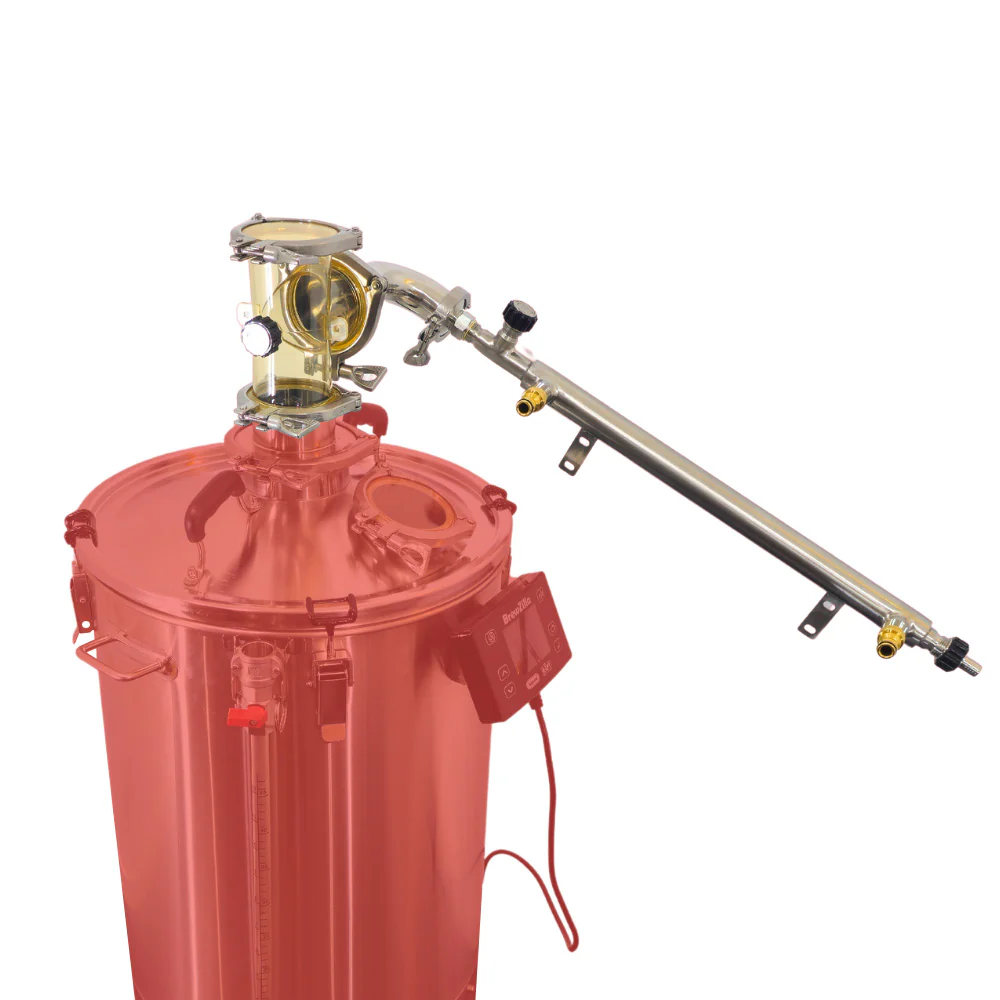

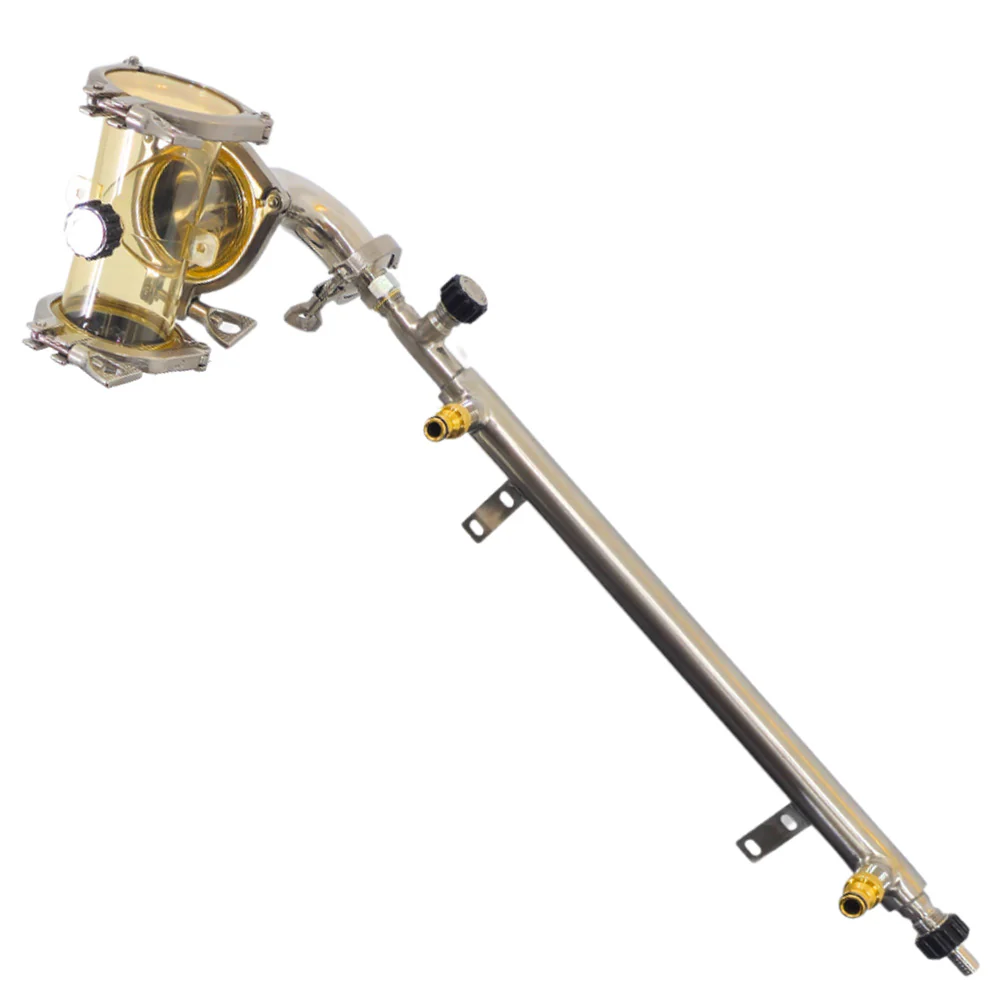

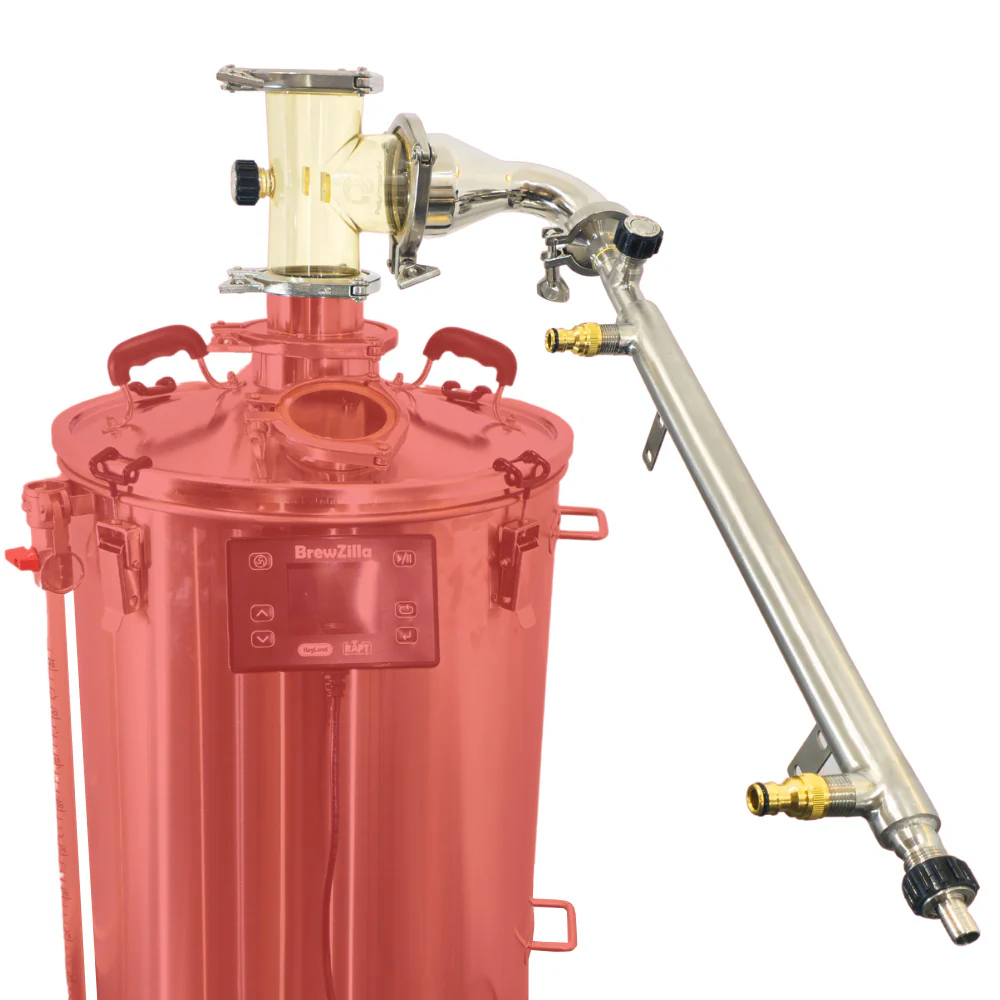

Please note: If you want to set it up differently, simply add the items from the list above, and not add the parts you don't want. It is not cheaper by being in a kit, it is simply a grouped bundle of products used to make what is in the product photo.

Assembly required...
