Bronco Party Pump Kit

Need a set up for a Bucks? Mates Birthday? or just want to throw a raging party with a keg or three?

Jump on in to this Bronco Party Pump builder to get exactly what you need to get that delicious beer, cider or premix out of that keg!

This kit comes with 2m of 4mm x 8mm ID EVABarrier LightShield hosing.

Check with what Keg you're getting, most commonly it's going to be A-Type slide on couplers. If it's a CUB Keg it's 99% likely to be D-Type.
Odd ball kegs are S-Type, not many of them around anymore in Australia.

Installation:
Drop the white ball into the vertical post marked "out", then drop the net cup into the same post so that the ball would get caught. "Like a ball in a cup". Then screw on the grey plastic duotight push fitting. The Black hosing end will connect into this part.
Ensure the tubing is cut flush, do not cut it super short. It should be around 2m long (ideal length)
Then push in the joiner tube with a black and green end. The black end connects to the black hosing, where the green end plugs into the bronco tap. Push and twist all the way until it clicks.

Then put in the white duck bill valve into the "IN" post, then simply screw on the party pumper tube.
"You will be left with one grey plastic duotight fitting that you won't need" You would use that fitting if you wanted to eventually upgrade to a CO2 Tank/Regulator.

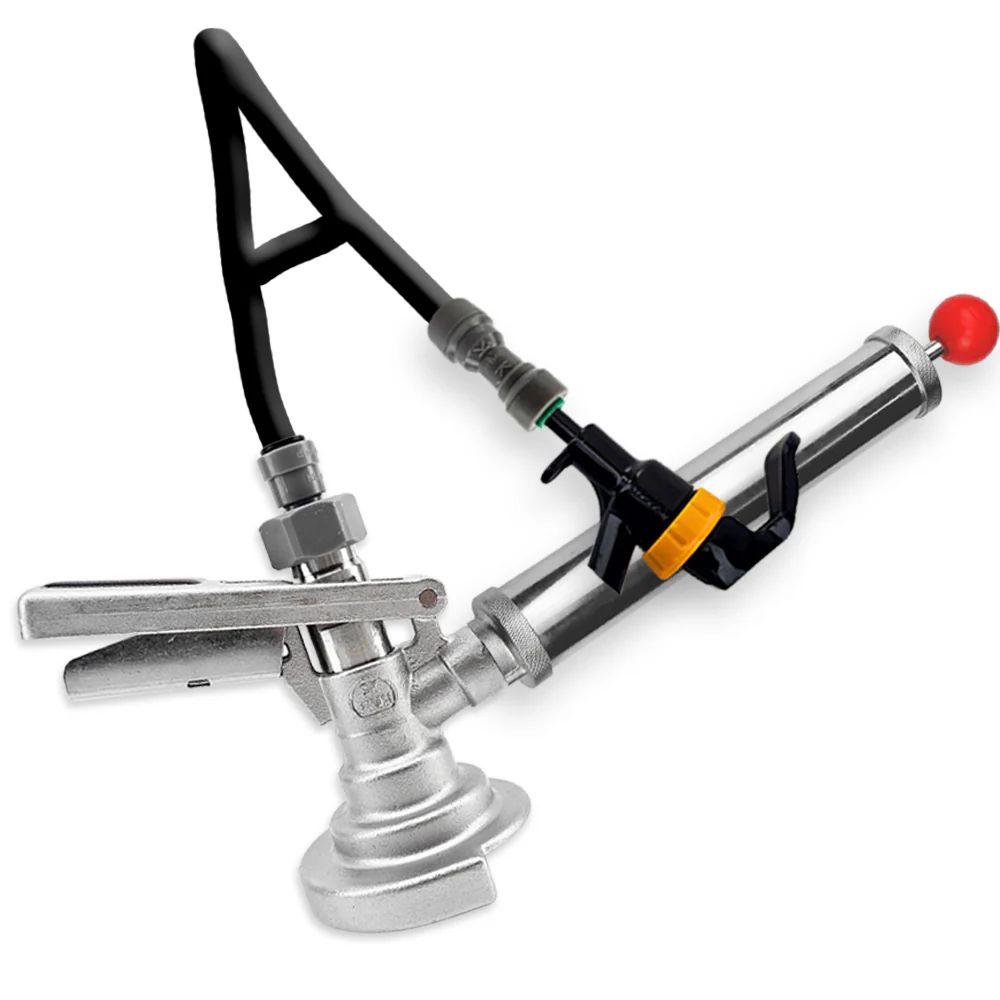

The photo's are for illustration purposes only. Please do not attempt to make an "A" with your hosing. You will be bitterly dissapointed.
