The Story

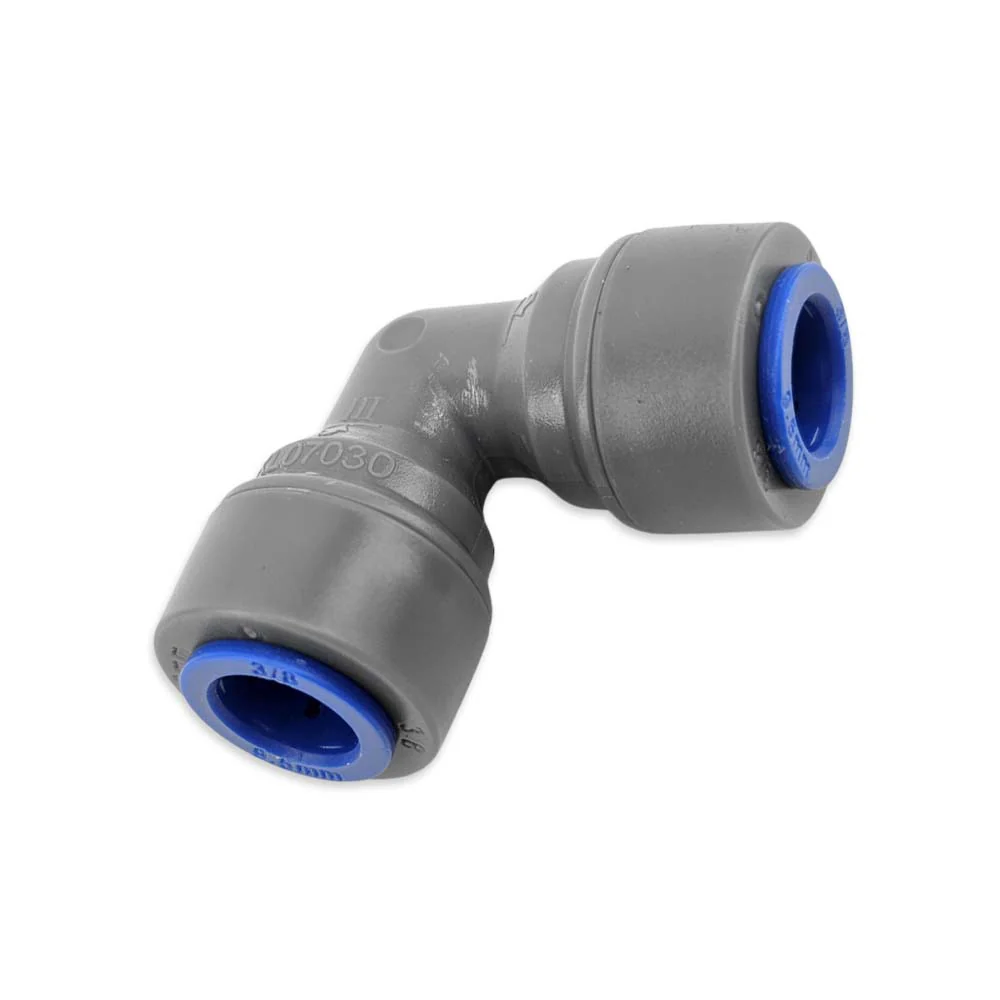

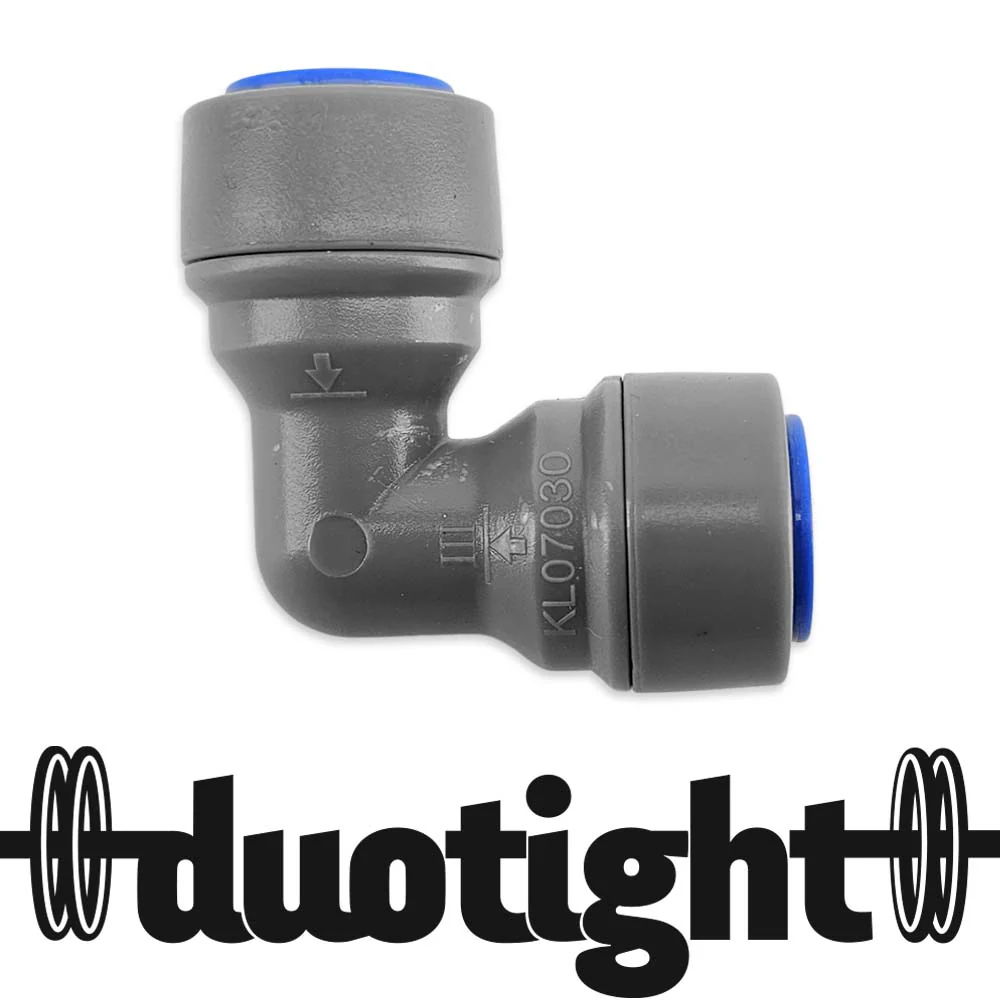

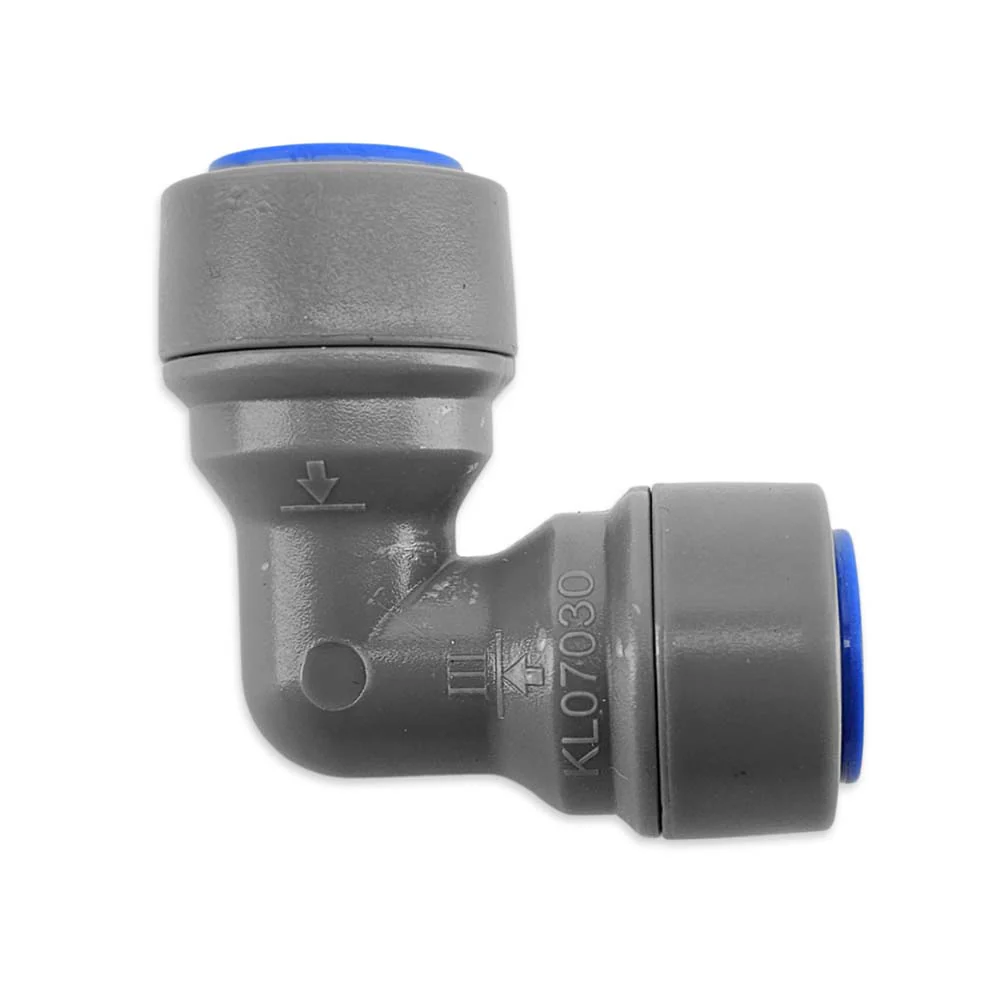

The 9.5mm elbow is designed to redirect gas of liquid on a 90 degree angle.
Compatible with our:
KL06248 - EVABarrier 6.3mm ID x 9.5mm OD x 12m Roll - Double Wall EVA
KL42772 - Black Lightshield EVABarrier 6.3mm ID x 9.5mm OD x 12m Roll - Double Wall EVA
Looking for high quaility push in fittings that will seal tight? duotight are the push in fitting with superior sealing capacity due to the double o-ring sealing design.
Why do we use Double O-rings?
The secret to our superior sealing performance is not just the fact that we use high quality EPDM o-rings but also use two of them. The double o-ring means we literally have twice the sealing surface surface when compared with other push in fittings. This makes our fittings even more reliable and reduces the chance of a leak significantly.
The double o-ring system also means that we can bend the hose with much tighter radius without causing leaking issues. This typically can be an issue with other fittings. This combination of factors makes duotight fittings the most reliable push fit fittings on the market.
Generation 2 duotight
- Colour Coded Collets (6.35mm [1/4"] = Green ~ 8mm [5/16] = Black ~ 9.5mm [3/8] = Blue)
- Burst pressure is over 300psi @ 25°C
- Material Polyketone (POK) no longer Acetal (like John Guest Fittings)
- Higher Chemical & UV Resistance
- Excellent Gas Barrier Properties with EPDM + Silicone Seals
- Superior Performance in Cold Temperatures
- Easier to fit with Gauge depth indicators >| |<
Looking for high quaility push in fittings that will seal tight? duotight are the push in fitting with superior sealing capacity due to the double o-ring sealing design.
Why do we use Double O-rings?
The secret to our superior sealing performance is not just the fact that we use high quality EPDM and a Silicone O-Ring.
No clamps necessary!
We do recommend cutting your hosing straight, not on an angle, to ensure the line has a complete seal. To remove the fitting simply push in the collet and the hose can be removed.
FAQ
What is EPDM?
EPDM = Ethylene Propylene Rubber which has excellent chemical resistance including being compatible with ozone, oils, wide variety of alkaline and acid compounds, water, alcohol, ketone and beverages.
EPDM is also resistant to aging, weather and will not perish easily like other rubber compounds. When compared with silicone and vinyl EPDM has better gas transmission rates, better wear resistance, is BPA free and is the number one choice for many long lasting food grade applications.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The 9.5mm elbow is designed to redirect gas of liquid on a 90 degree angle.
Compatible with our:
KL06248 - EVABarrier 6.3mm ID x 9.5mm OD x 12m Roll - Double Wall EVA
KL42772 - Black Lightshield EVABarrier 6.3mm ID x 9.5mm OD x 12m Roll - Double Wall EVA
Looking for high quaility push in fittings that will seal tight? duotight are the push in fitting with superior sealing capacity due to the double o-ring sealing design.
Why do we use Double O-rings?
The secret to our superior sealing performance is not just the fact that we use high quality EPDM o-rings but also use two of them. The double o-ring means we literally have twice the sealing surface surface when compared with other push in fittings. This makes our fittings even more reliable and reduces the chance of a leak significantly.
The double o-ring system also means that we can bend the hose with much tighter radius without causing leaking issues. This typically can be an issue with other fittings. This combination of factors makes duotight fittings the most reliable push fit fittings on the market.
Generation 2 duotight
- Colour Coded Collets (6.35mm [1/4"] = Green ~ 8mm [5/16] = Black ~ 9.5mm [3/8] = Blue)
- Burst pressure is over 300psi @ 25°C
- Material Polyketone (POK) no longer Acetal (like John Guest Fittings)
- Higher Chemical & UV Resistance
- Excellent Gas Barrier Properties with EPDM + Silicone Seals
- Superior Performance in Cold Temperatures
- Easier to fit with Gauge depth indicators >| |<
Looking for high quaility push in fittings that will seal tight? duotight are the push in fitting with superior sealing capacity due to the double o-ring sealing design.
Why do we use Double O-rings?
The secret to our superior sealing performance is not just the fact that we use high quality EPDM and a Silicone O-Ring.
No clamps necessary!
We do recommend cutting your hosing straight, not on an angle, to ensure the line has a complete seal. To remove the fitting simply push in the collet and the hose can be removed.
FAQ
What is EPDM?
EPDM = Ethylene Propylene Rubber which has excellent chemical resistance including being compatible with ozone, oils, wide variety of alkaline and acid compounds, water, alcohol, ketone and beverages.
EPDM is also resistant to aging, weather and will not perish easily like other rubber compounds. When compared with silicone and vinyl EPDM has better gas transmission rates, better wear resistance, is BPA free and is the number one choice for many long lasting food grade applications.
