Grand Deluxe 3: The Ultimate Commercial-Grade Three Door Kegerator: Kegerator Builder

Step 1: Choose Your Kegerator Finish

Select the foundation of your build. Both options feature a 304 stainless steel countertop, lockable self-closing glass doors, and the same high-performance cooling components.

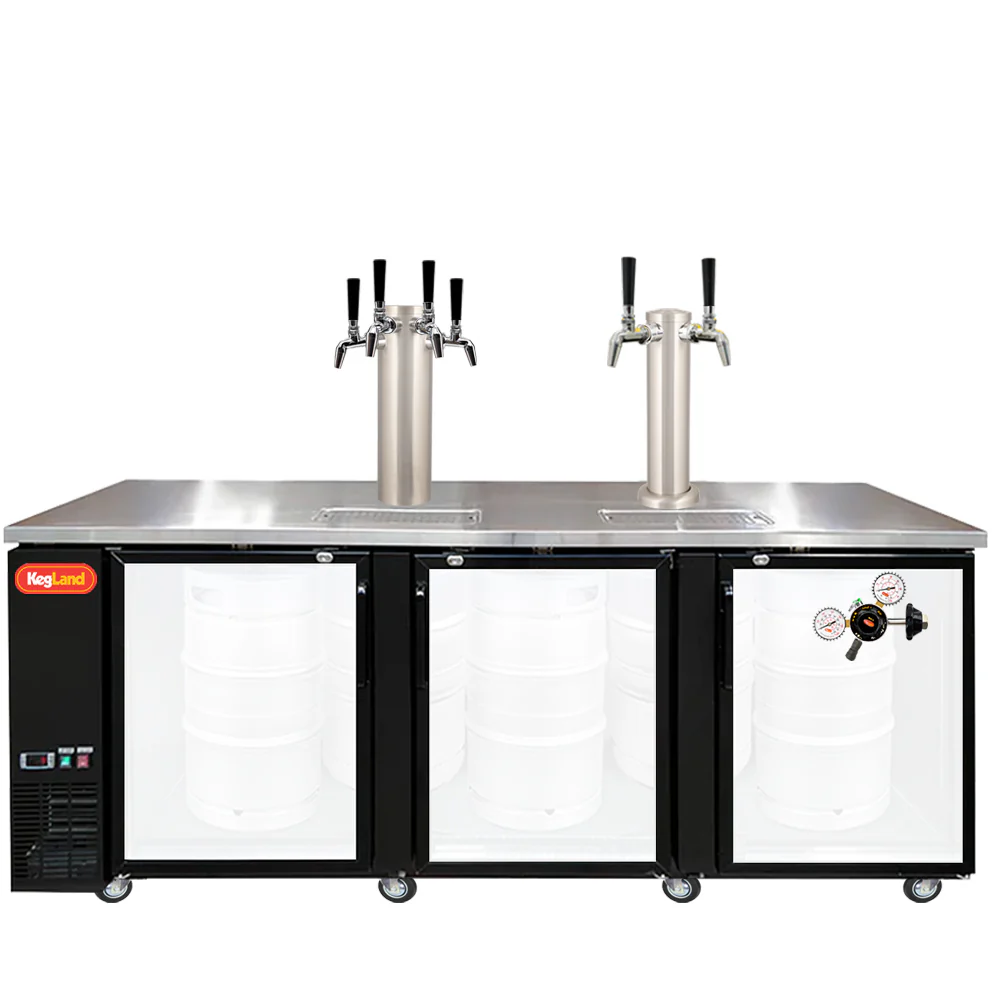

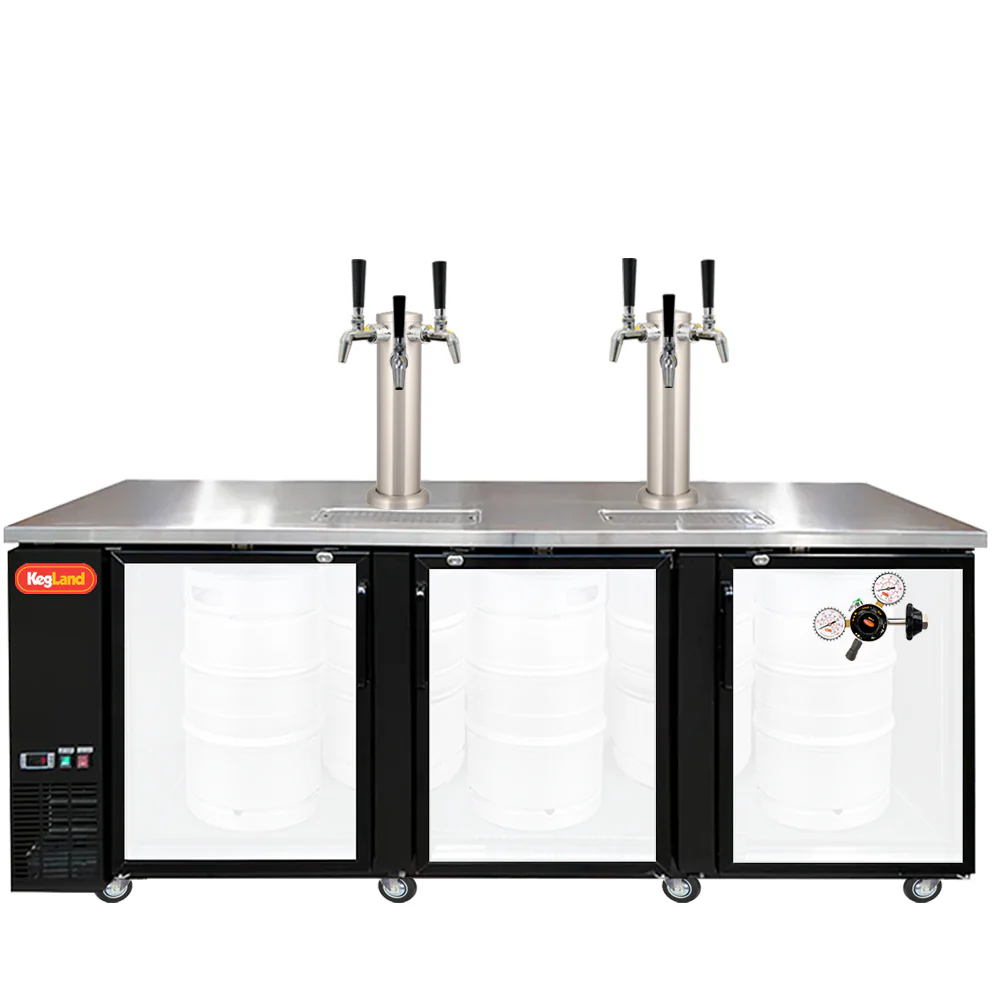

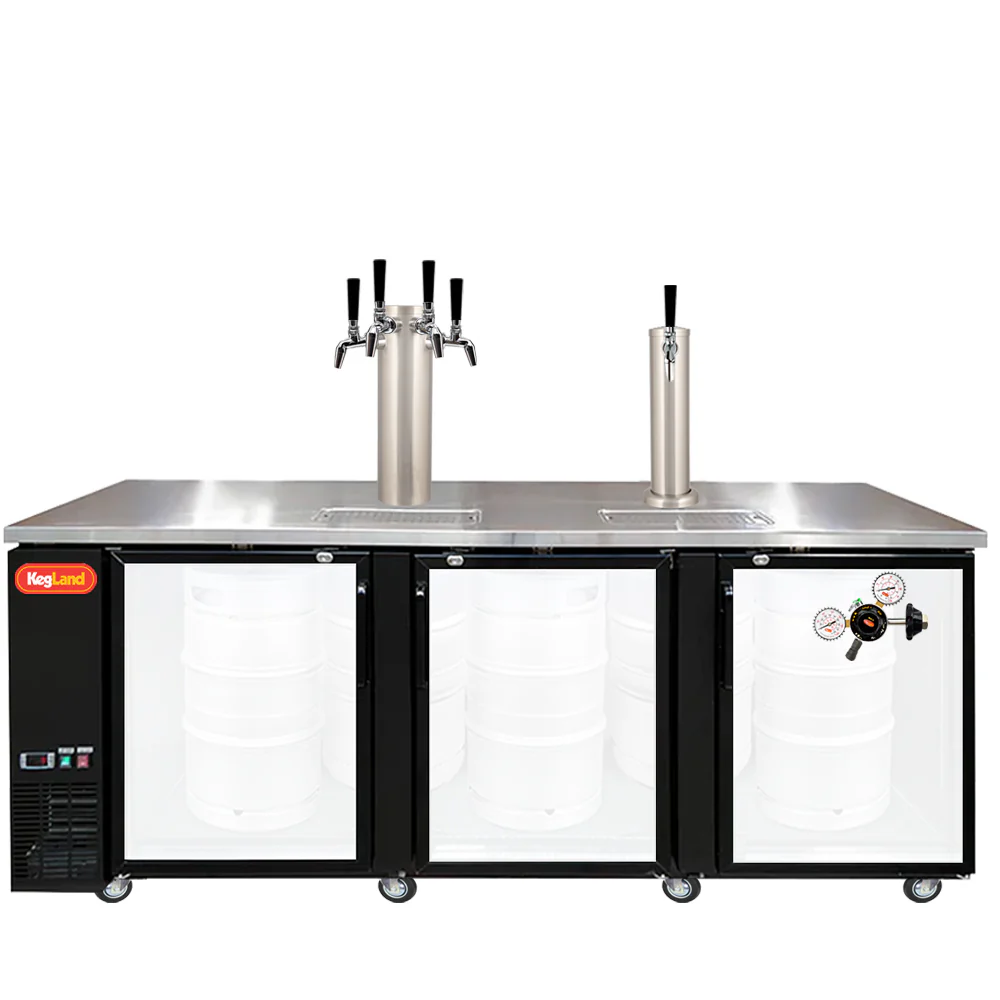

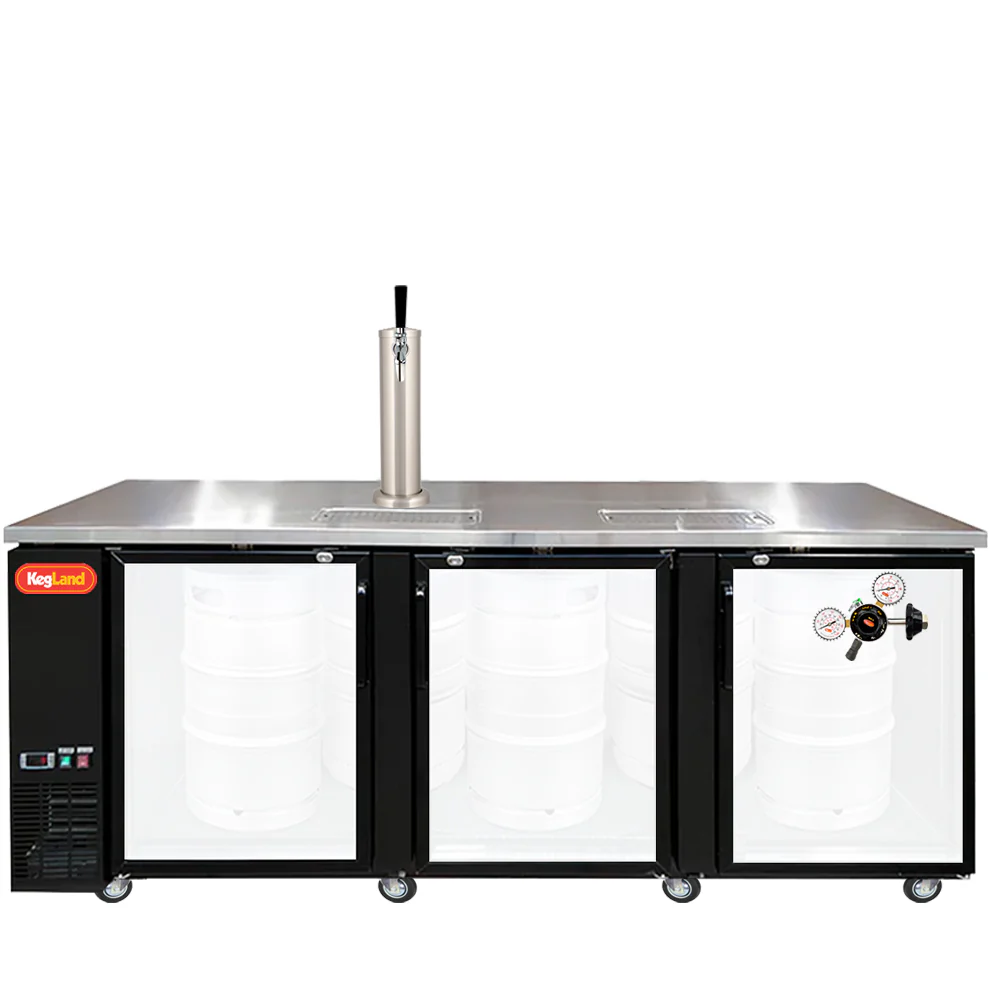

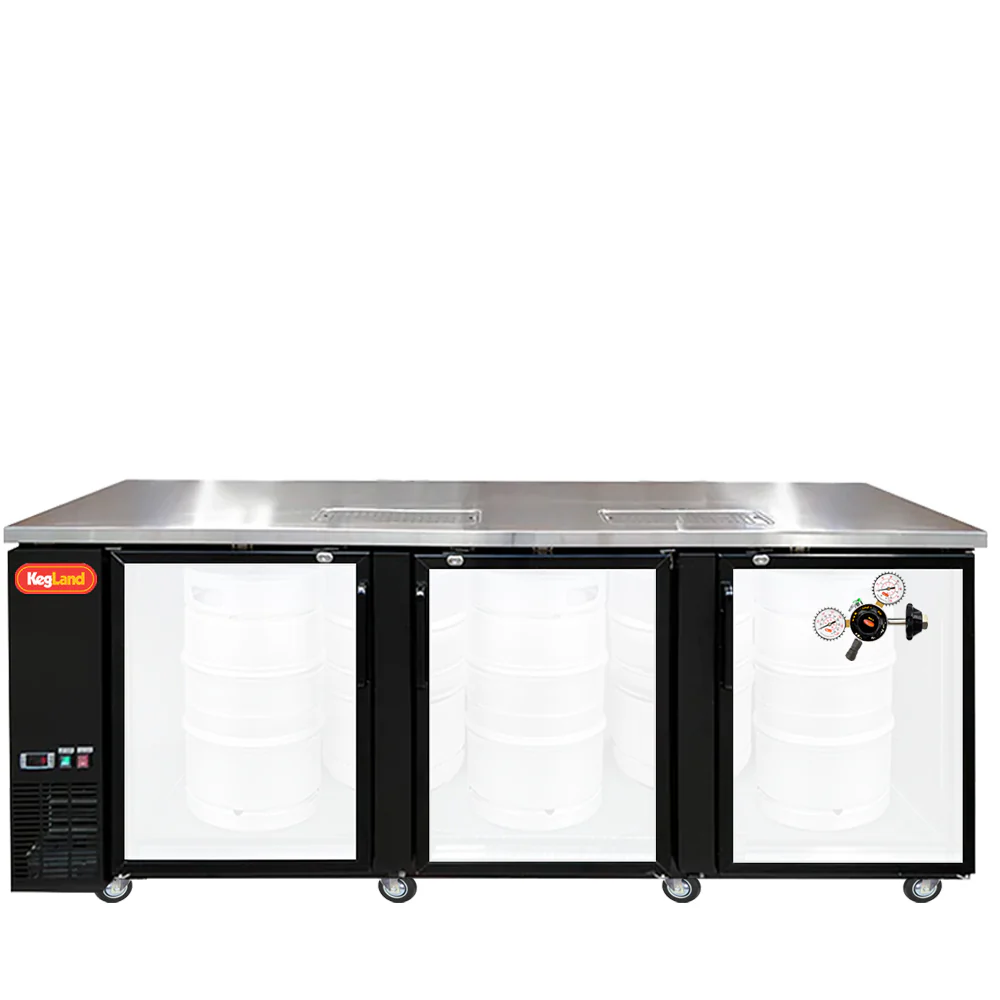

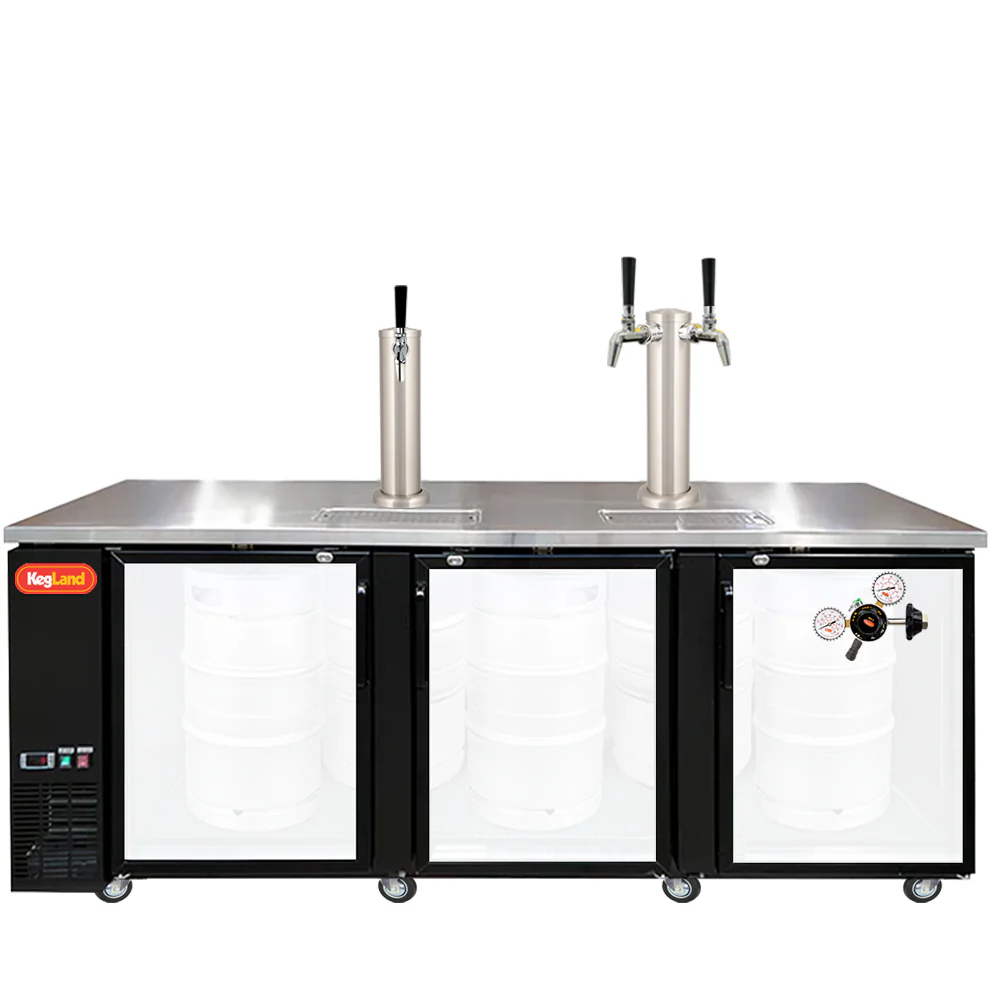

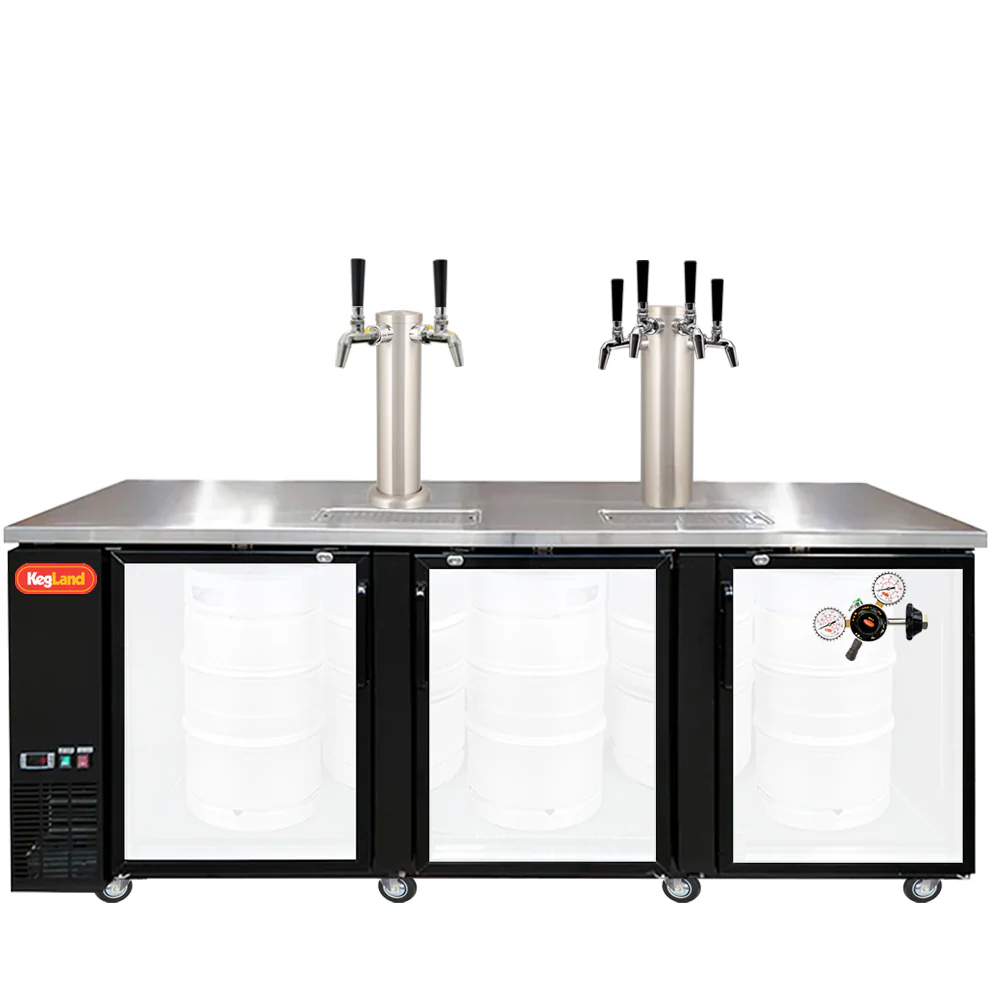

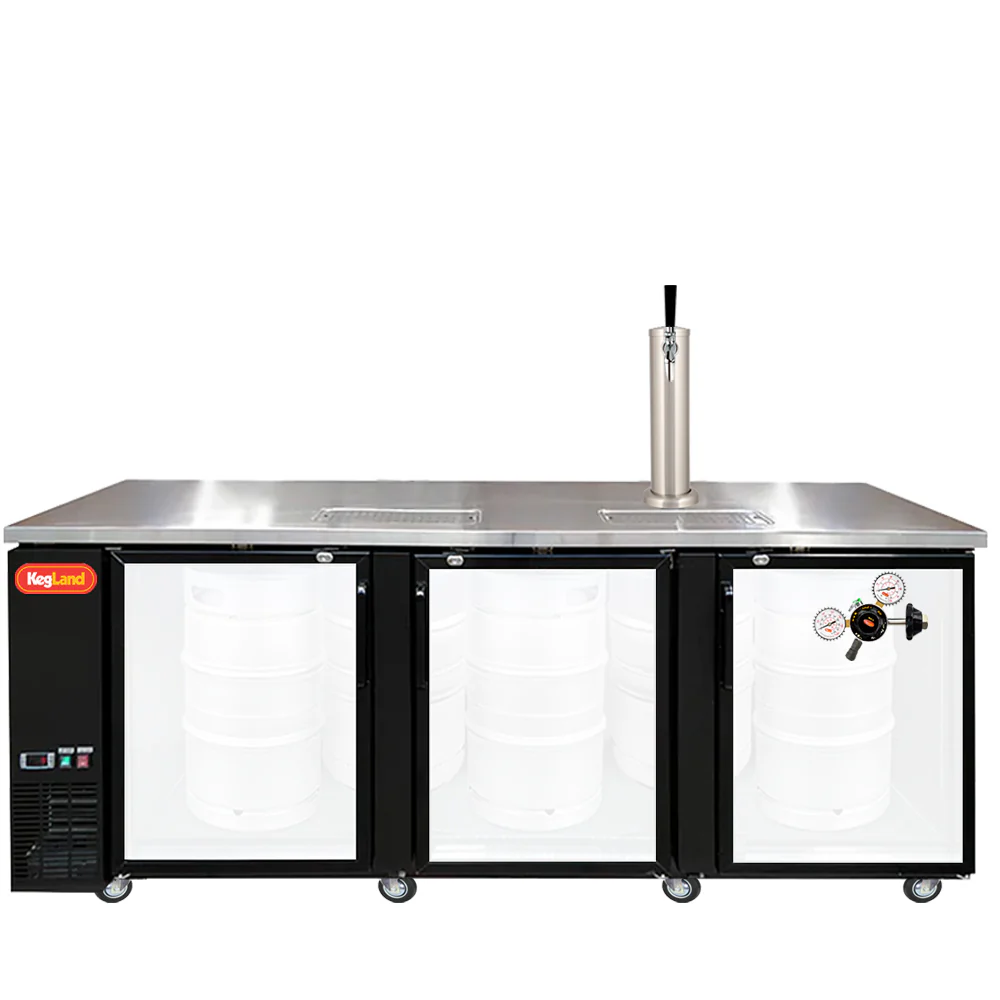

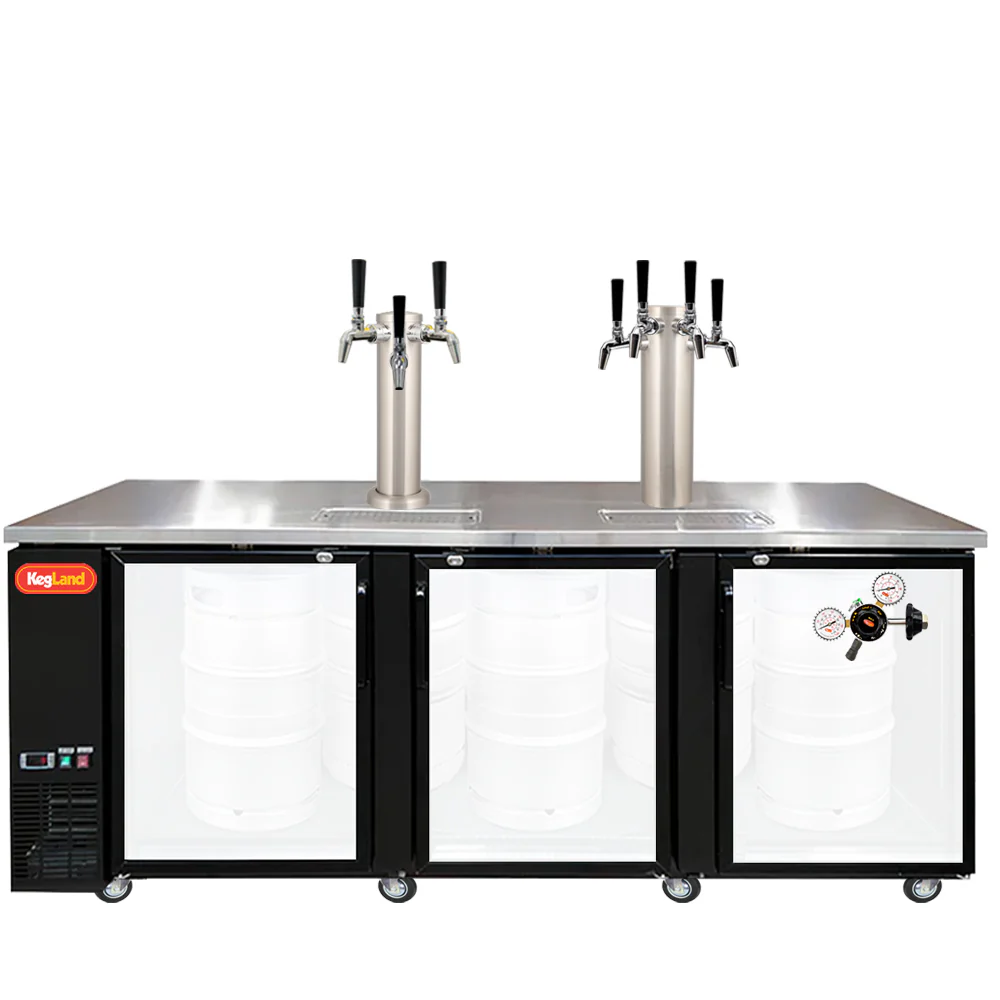

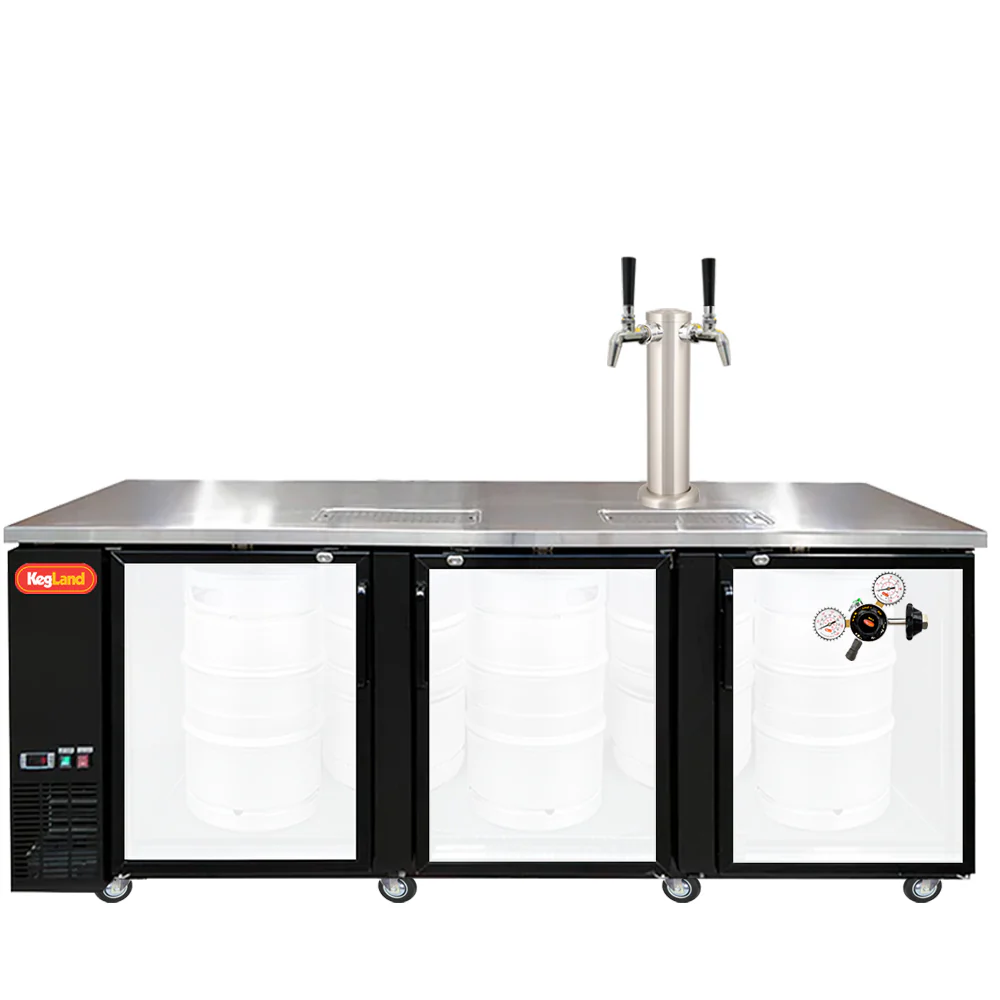

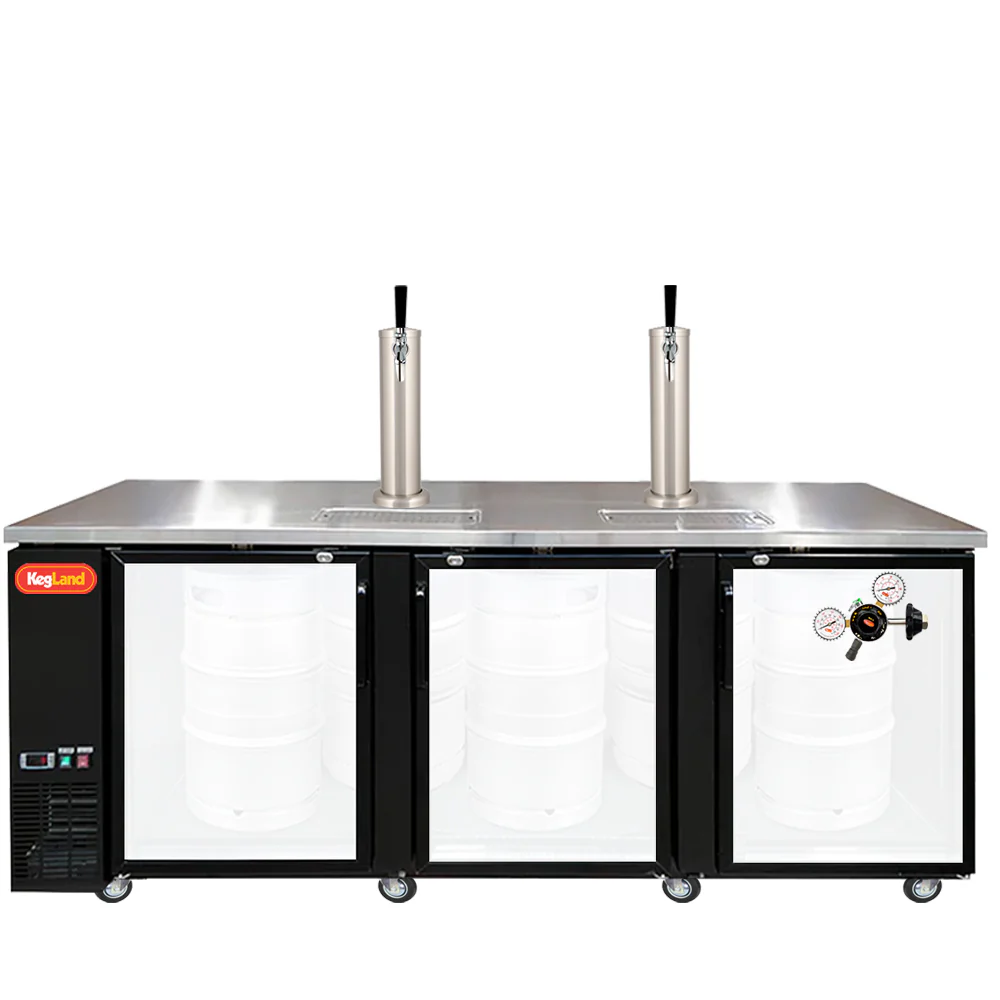

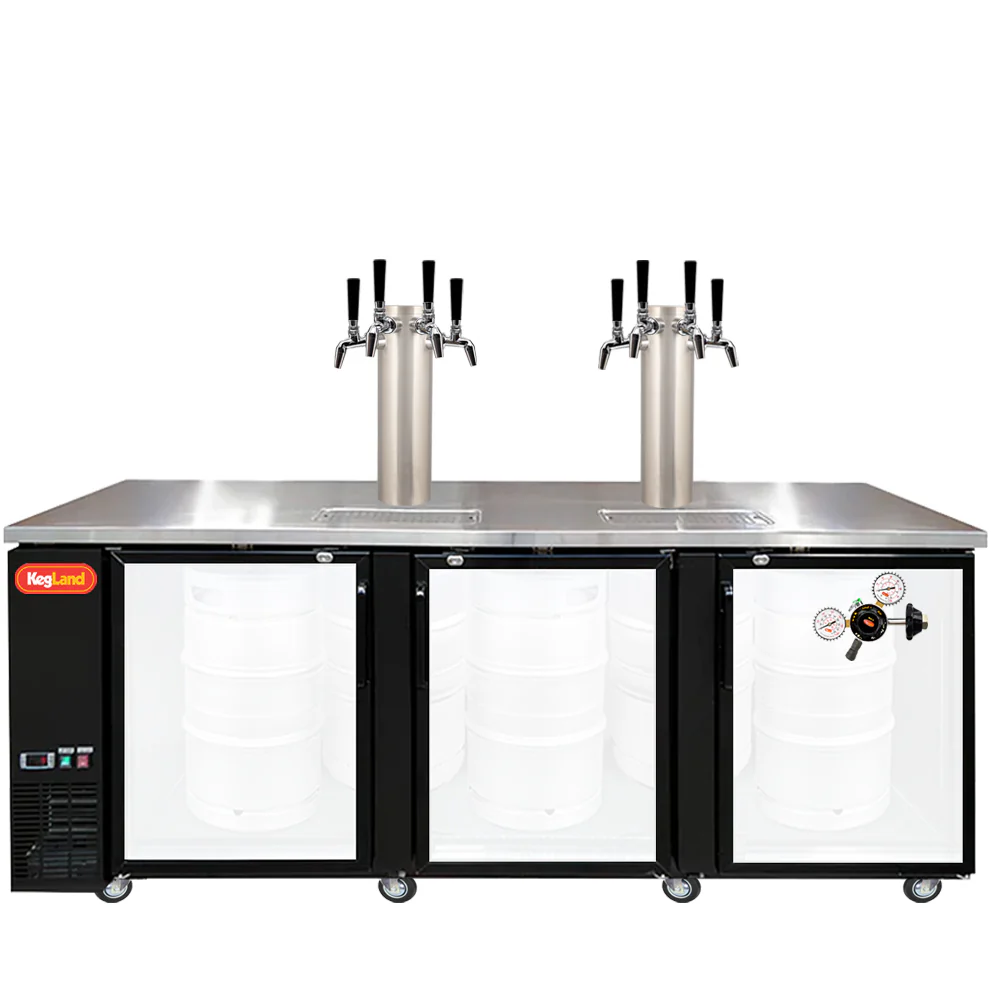

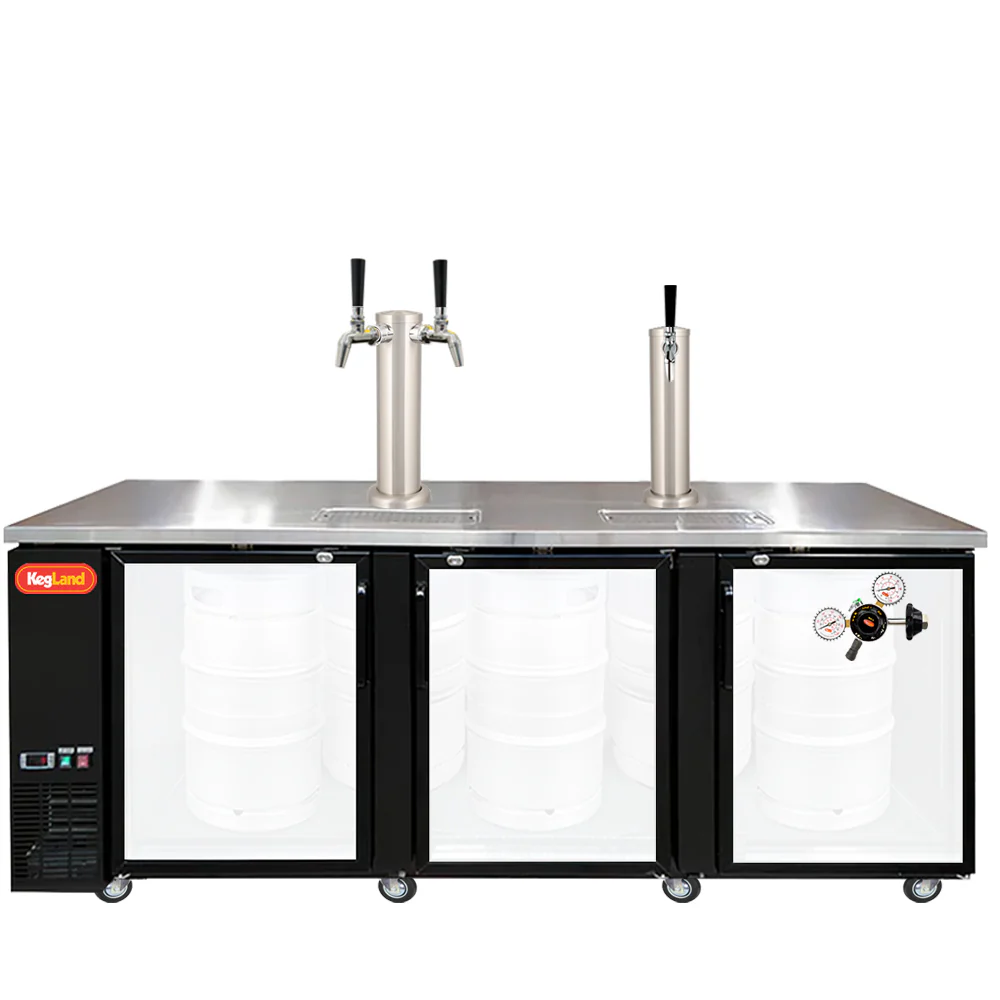

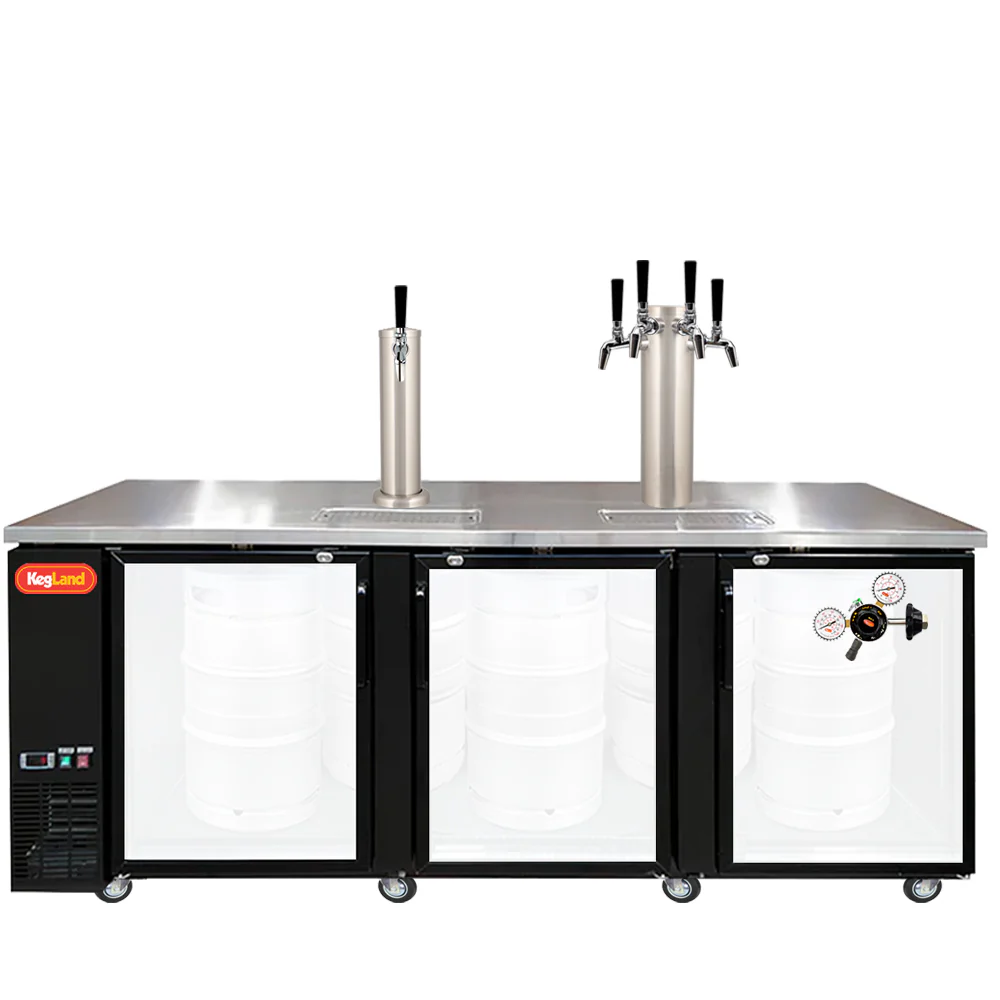

Grand Deluxe 3 - Black Matte Steel

A sleek and durable black matte steel finish that is chemically engineered with a vinyl substrate to prevent corrosion. The modern, understated look is perfect for any man cave or contemporary bar.

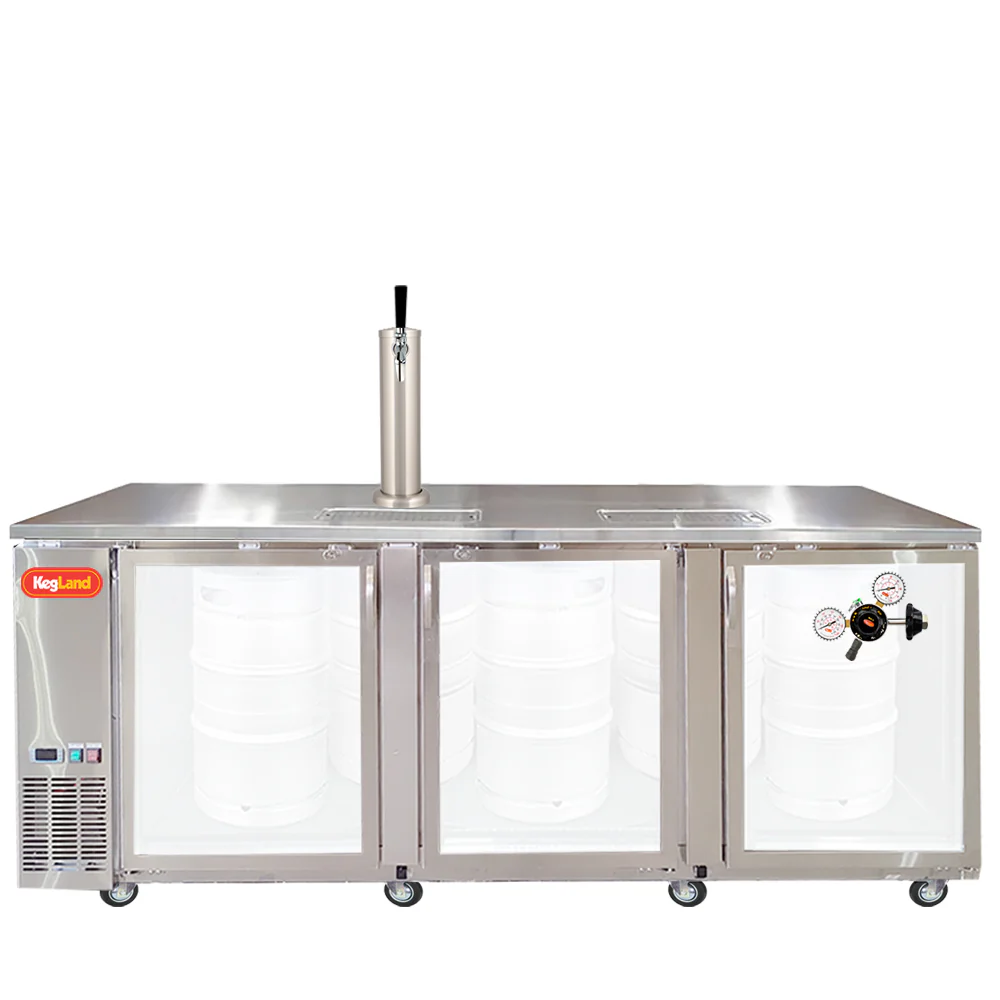

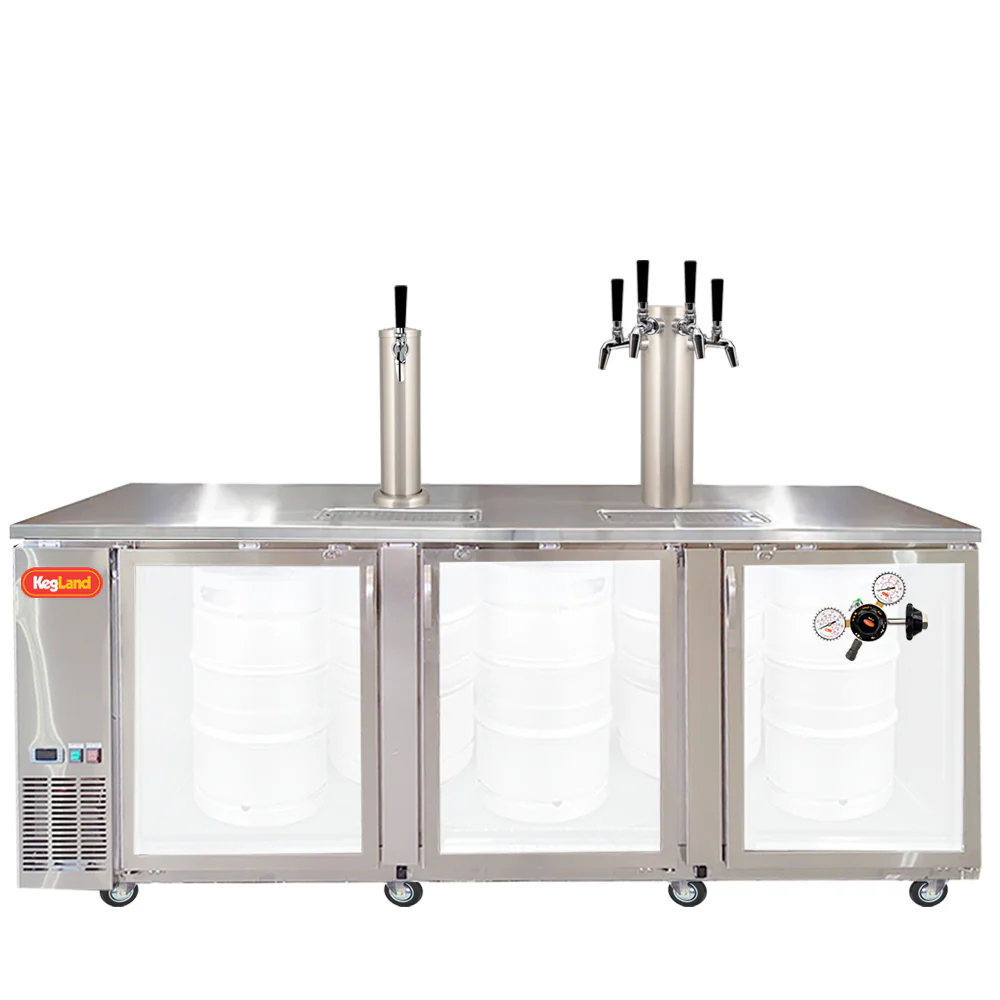

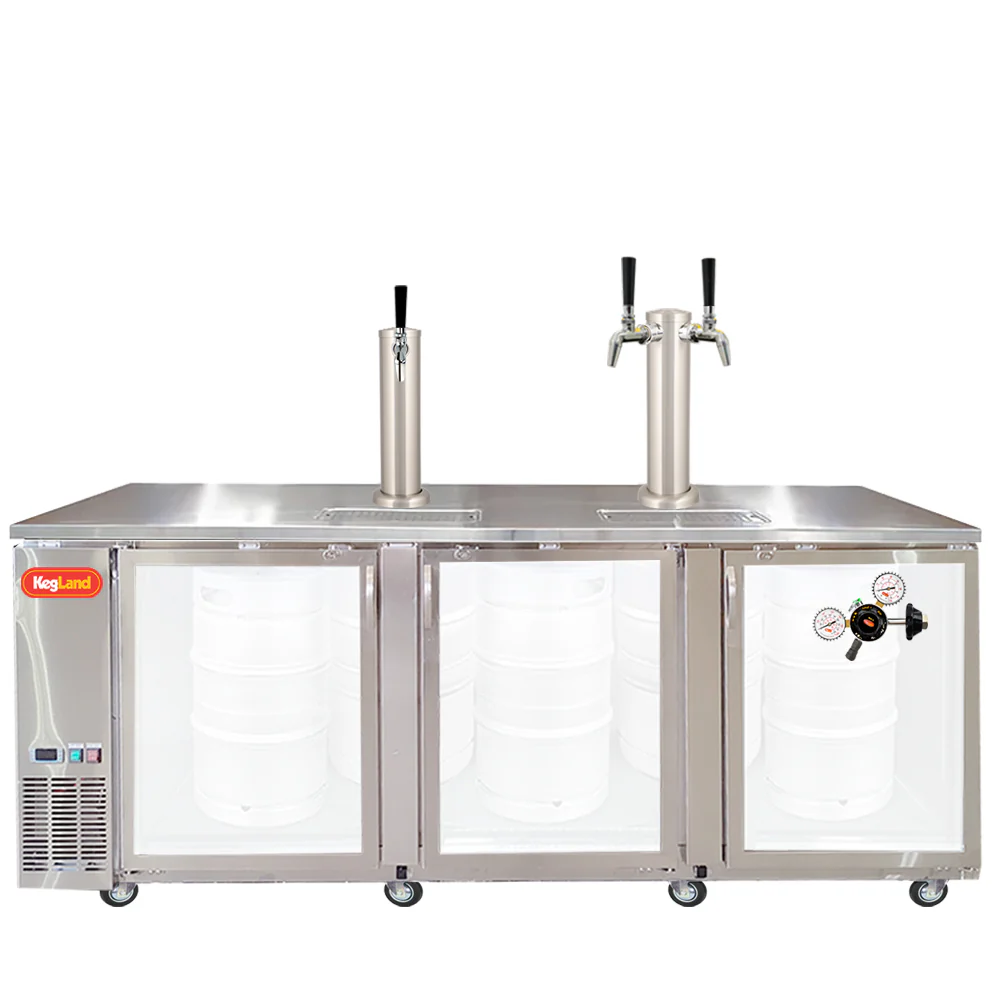

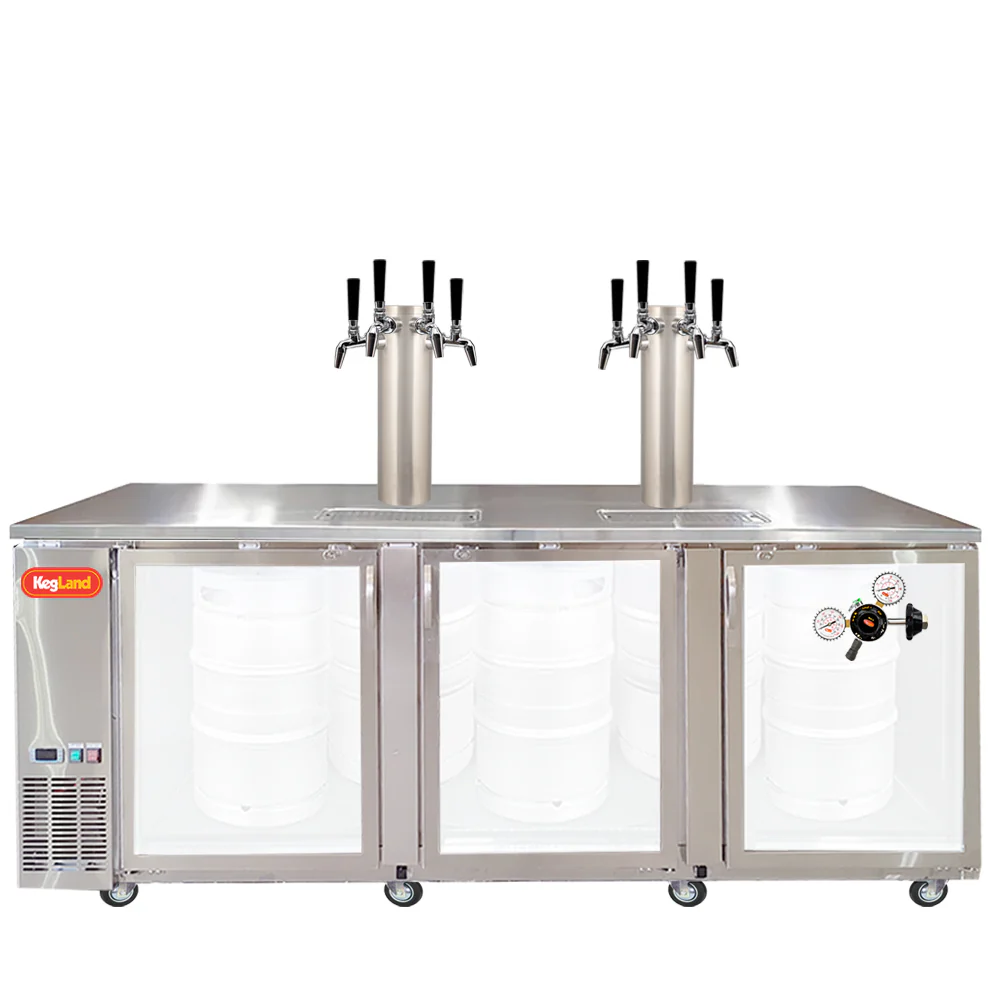

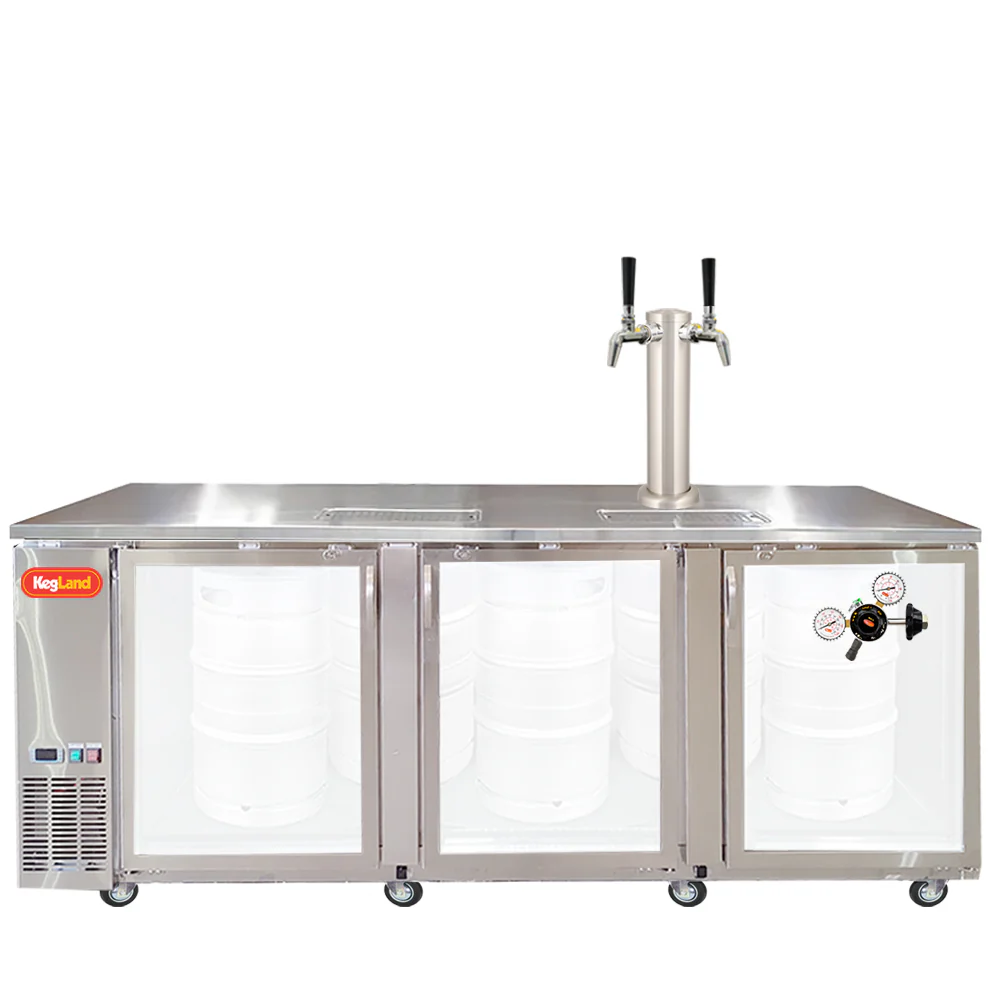

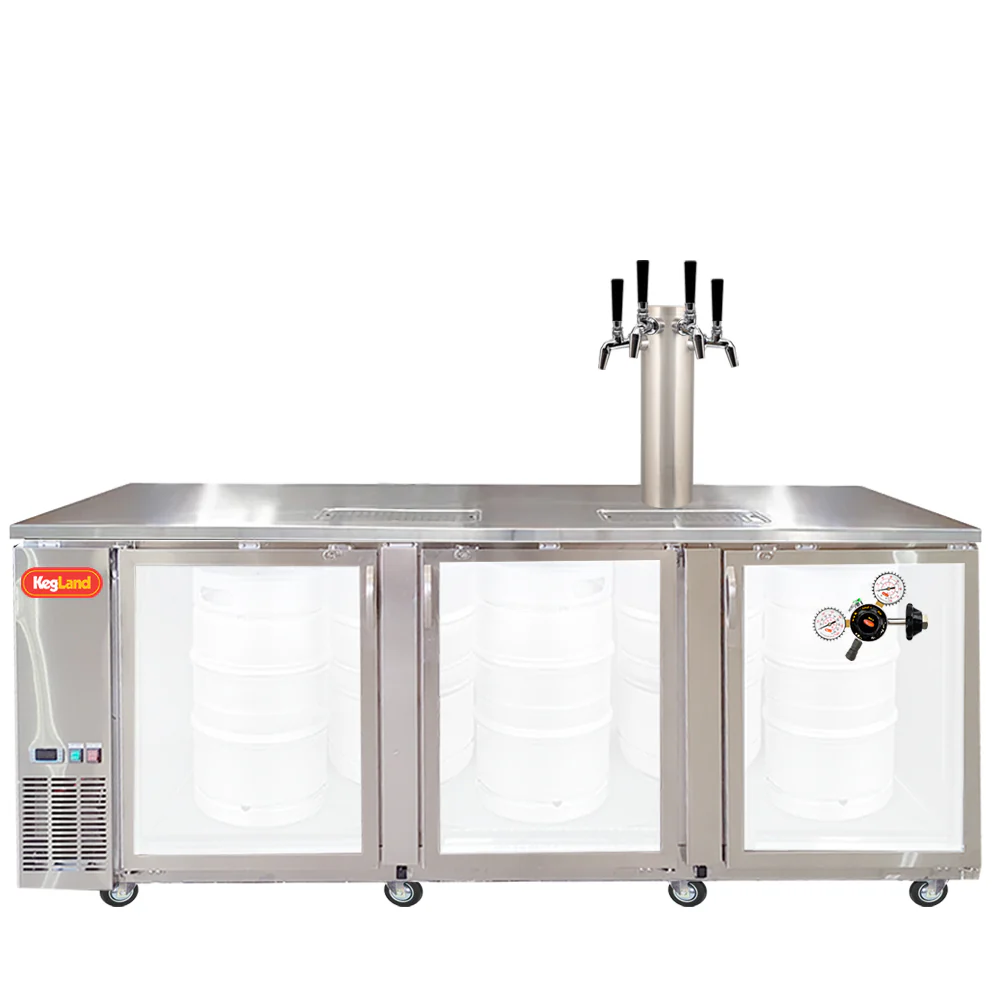

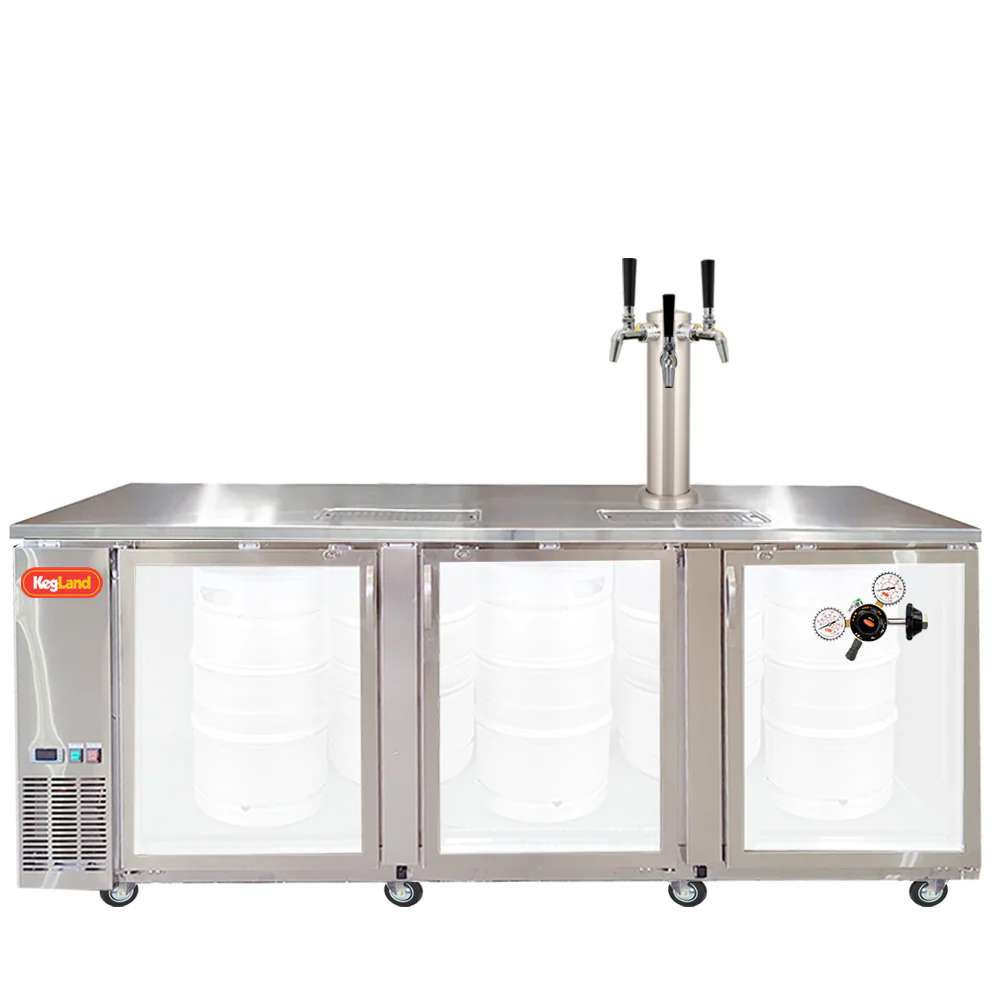

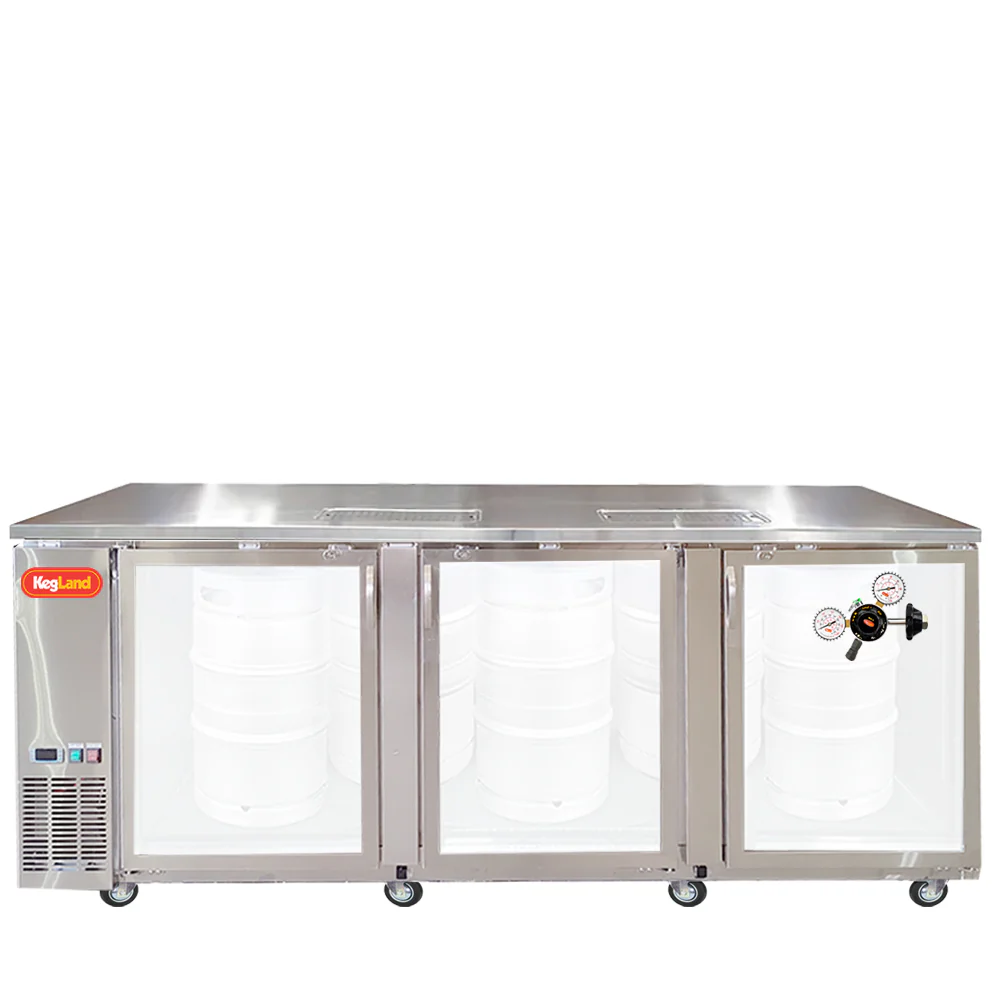

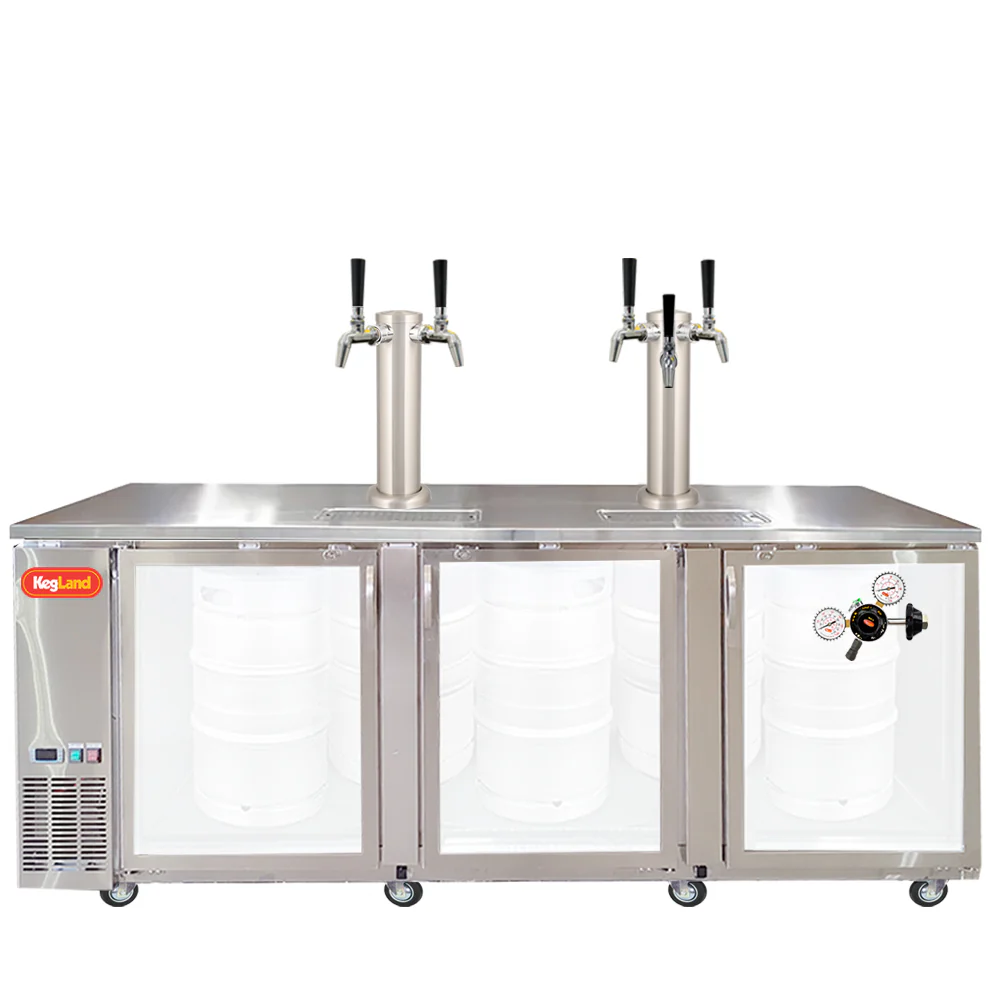

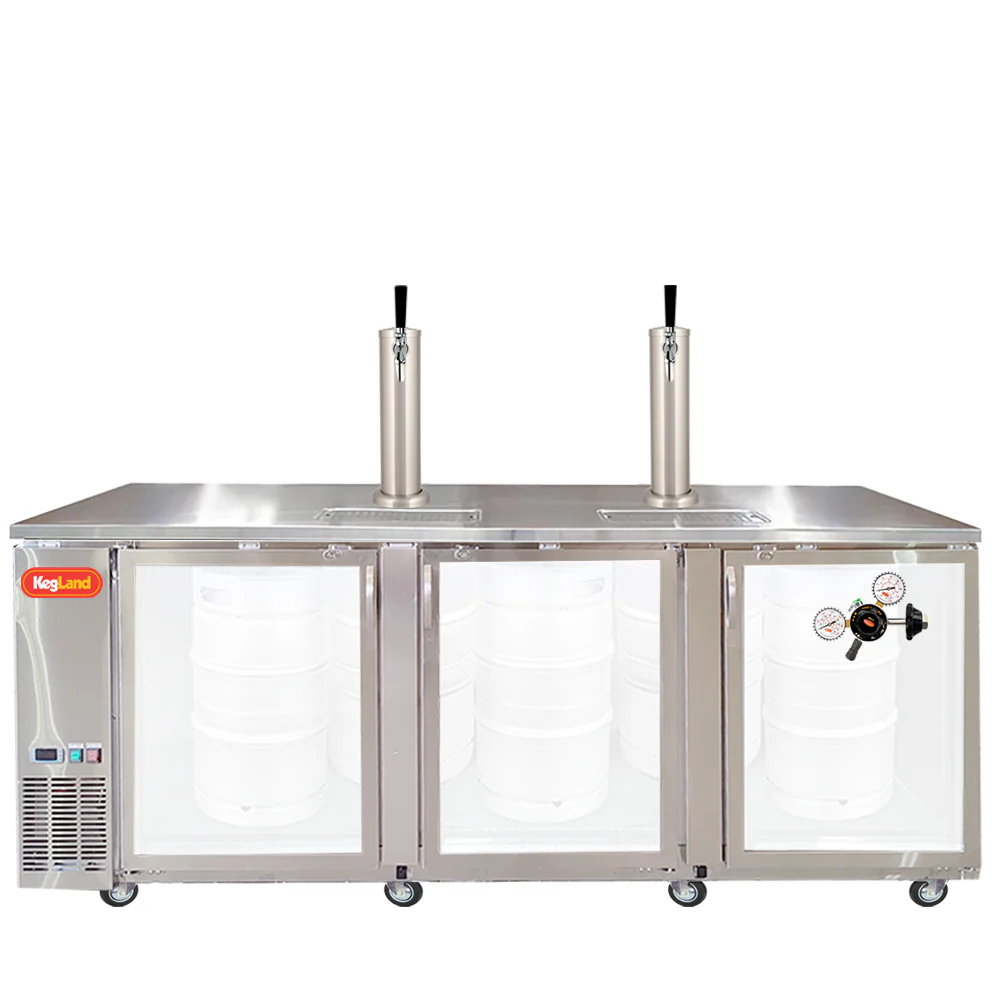

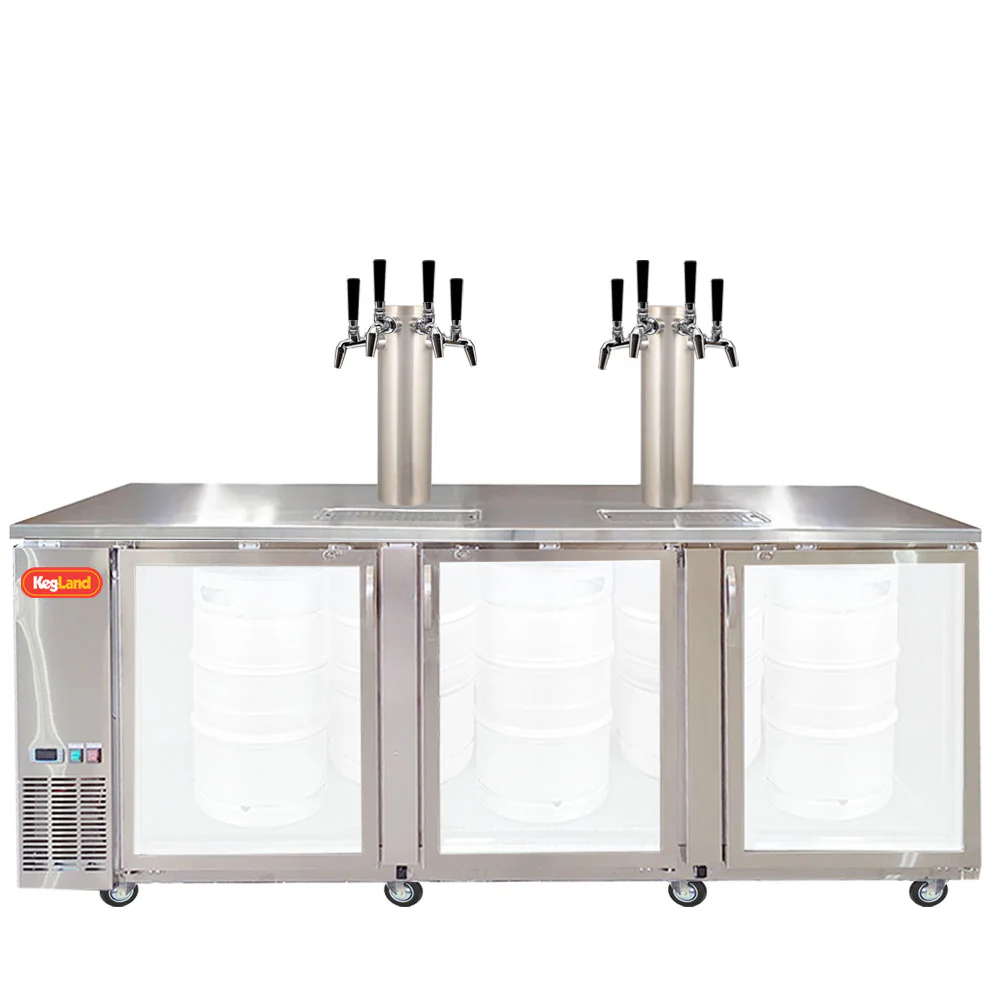

Grand Deluxe 3 - Premium Stainless Steel

The complete package in a stunning, full 304 stainless steel finish. This premium option offers a timeless professional aesthetic, exceptional durability, and is incredibly easy to clean and sanitise.

---

Step 2: Select Your Taps & Font Style

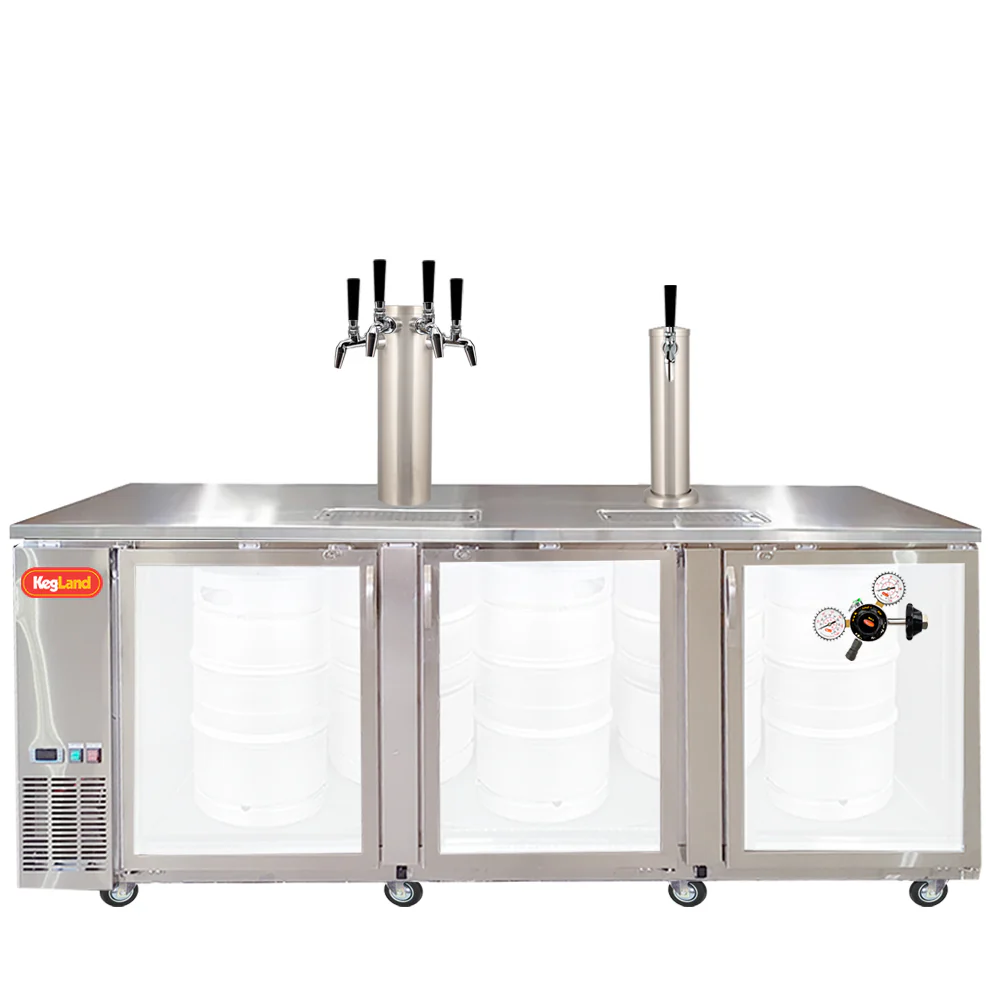

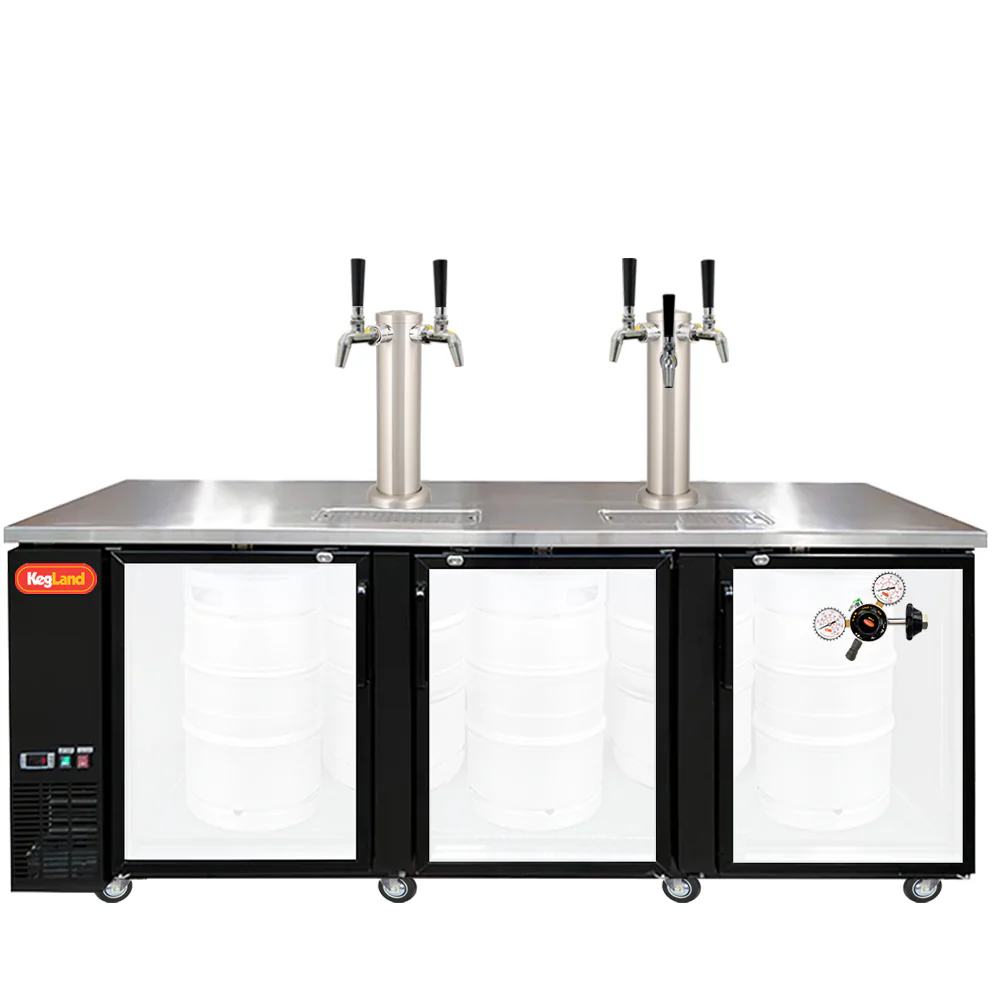

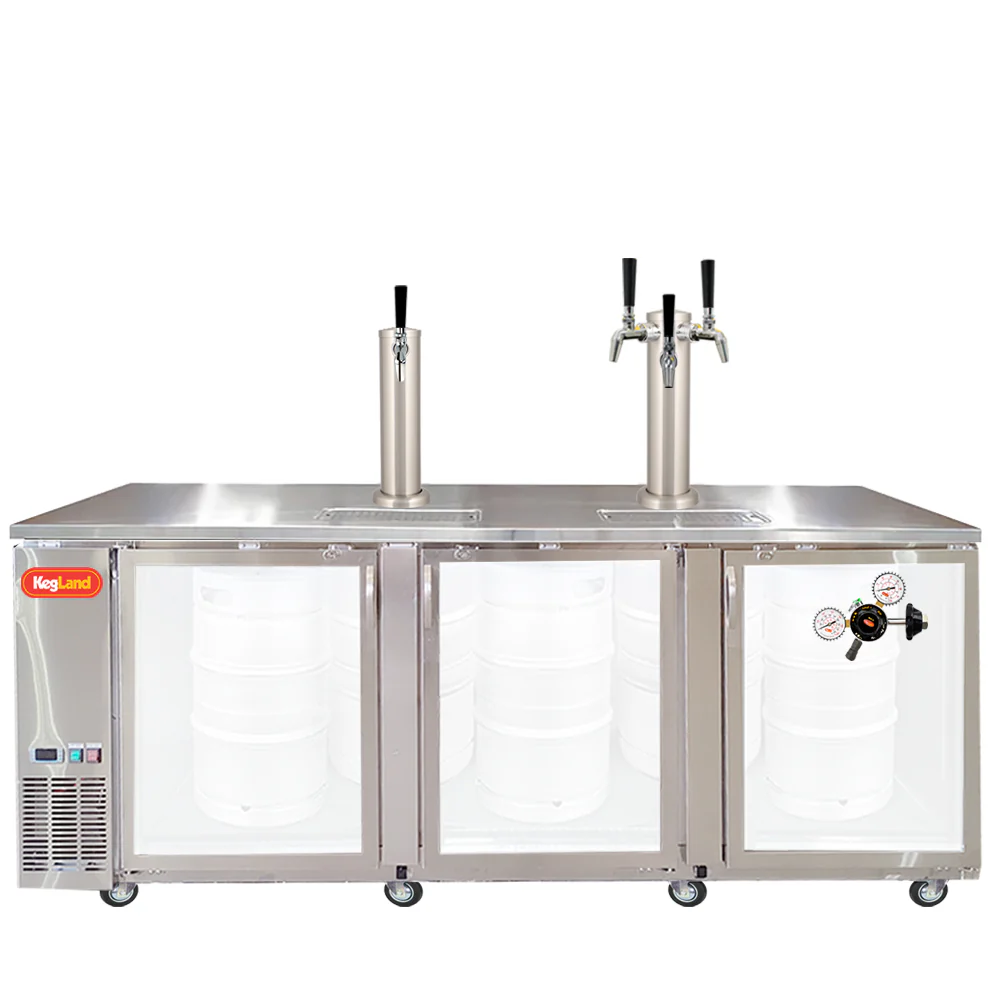

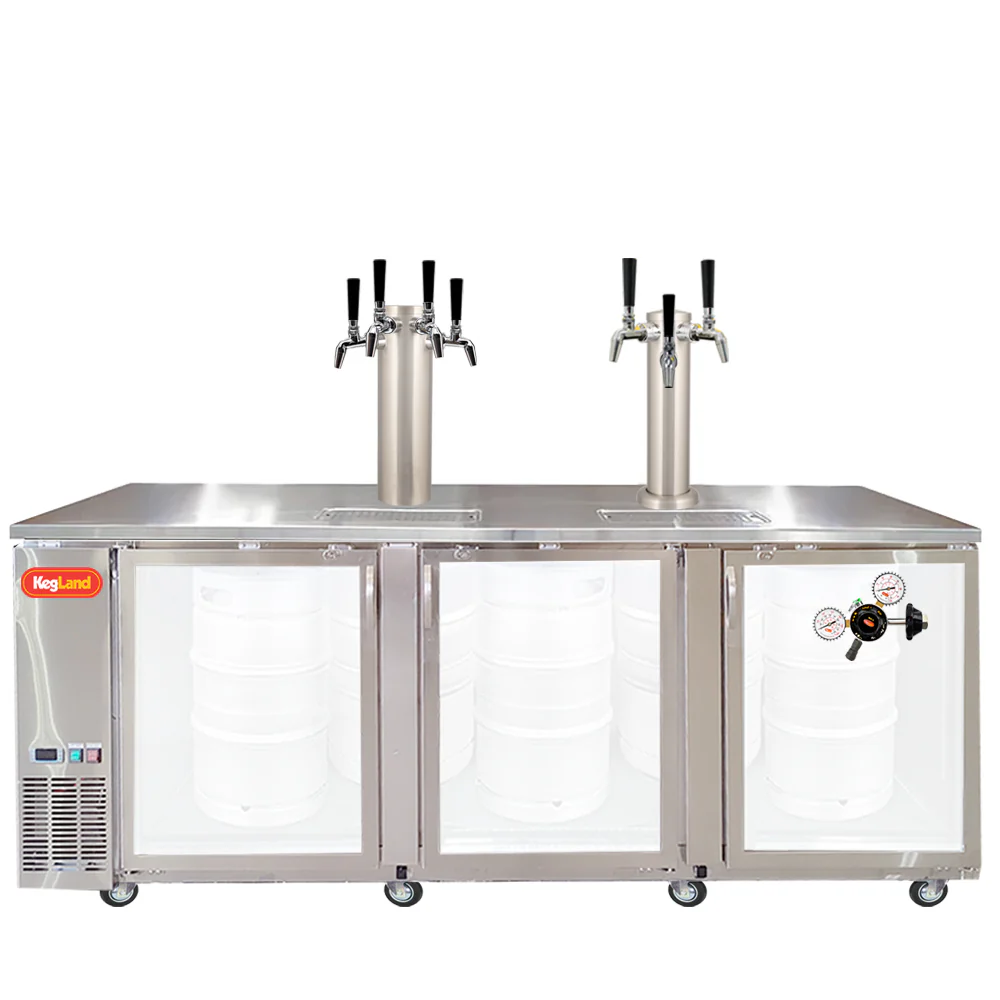

Customise your dispensing setup with industry-leading NukaTap Stainless Steel taps. Choose from a single tap for your favourite brew up to a four-tap T-bar for showcasing a full range. The GD3 has 2 font slots so you can have anywhere from 1 to 8 taps mount on the system.

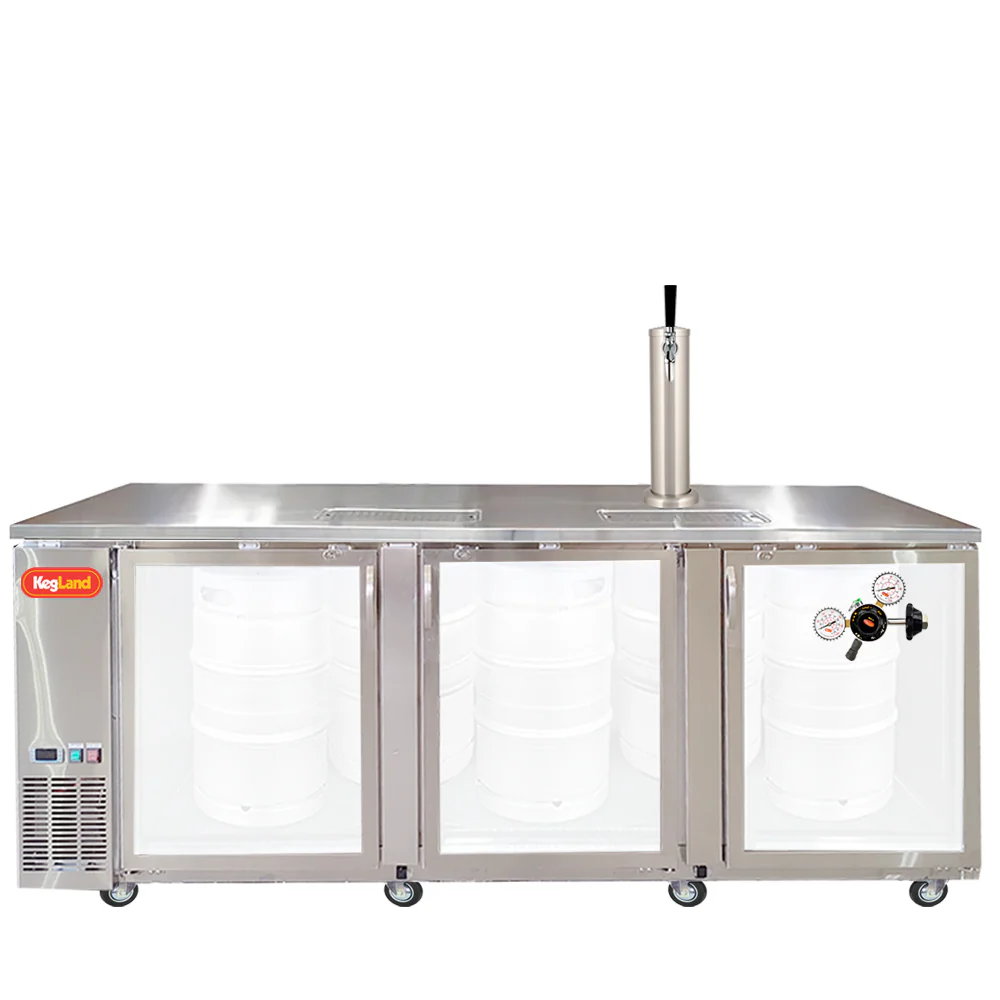

• One Tap Kit: 1 x NukaTap SS on a Brushed Stainless Font Kit
• Two Tap Kit: 2 x NukaTaps SS on a Brushed Stainless Double Font Kit

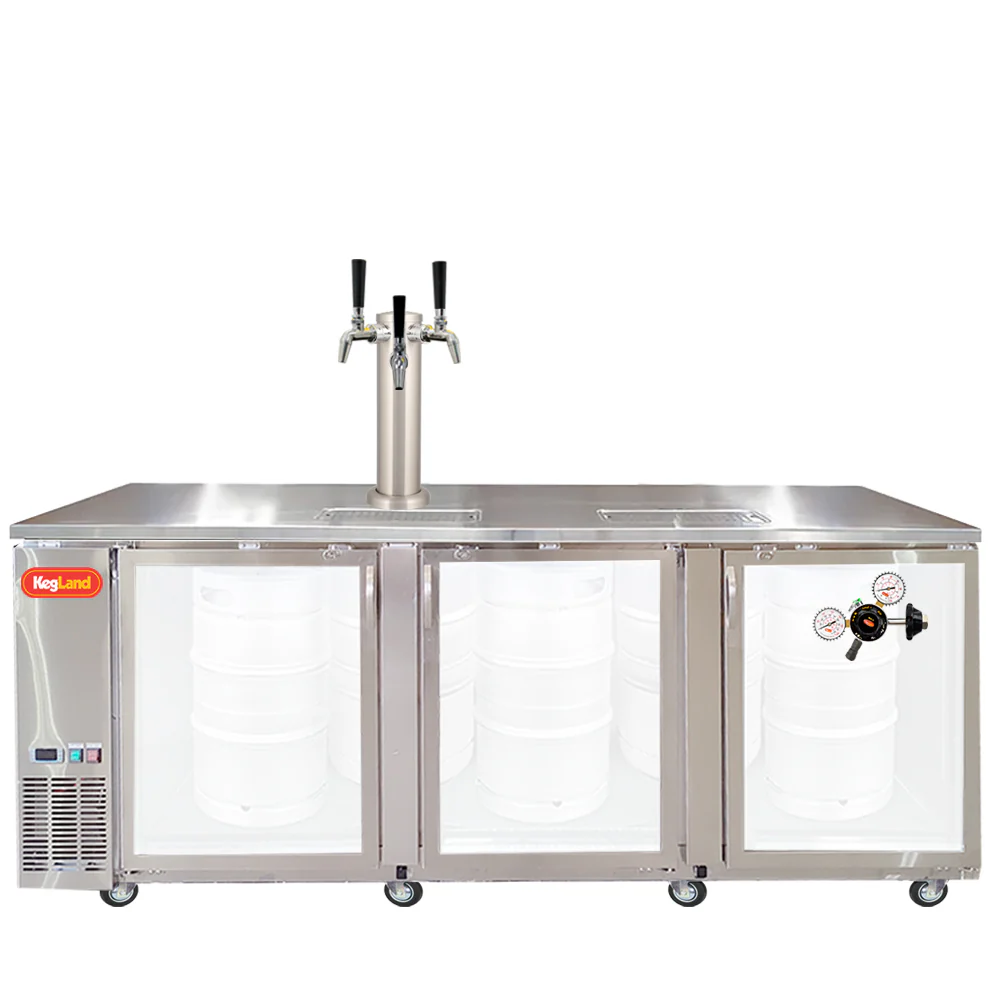

• Three Tap Kit: 3 x NukaTaps SS on a Brushed Stainless Triple Font Kit
• Four Tap Kit: 4 x NukaTaps SS on a Brushed Stainless Quad Font Kit

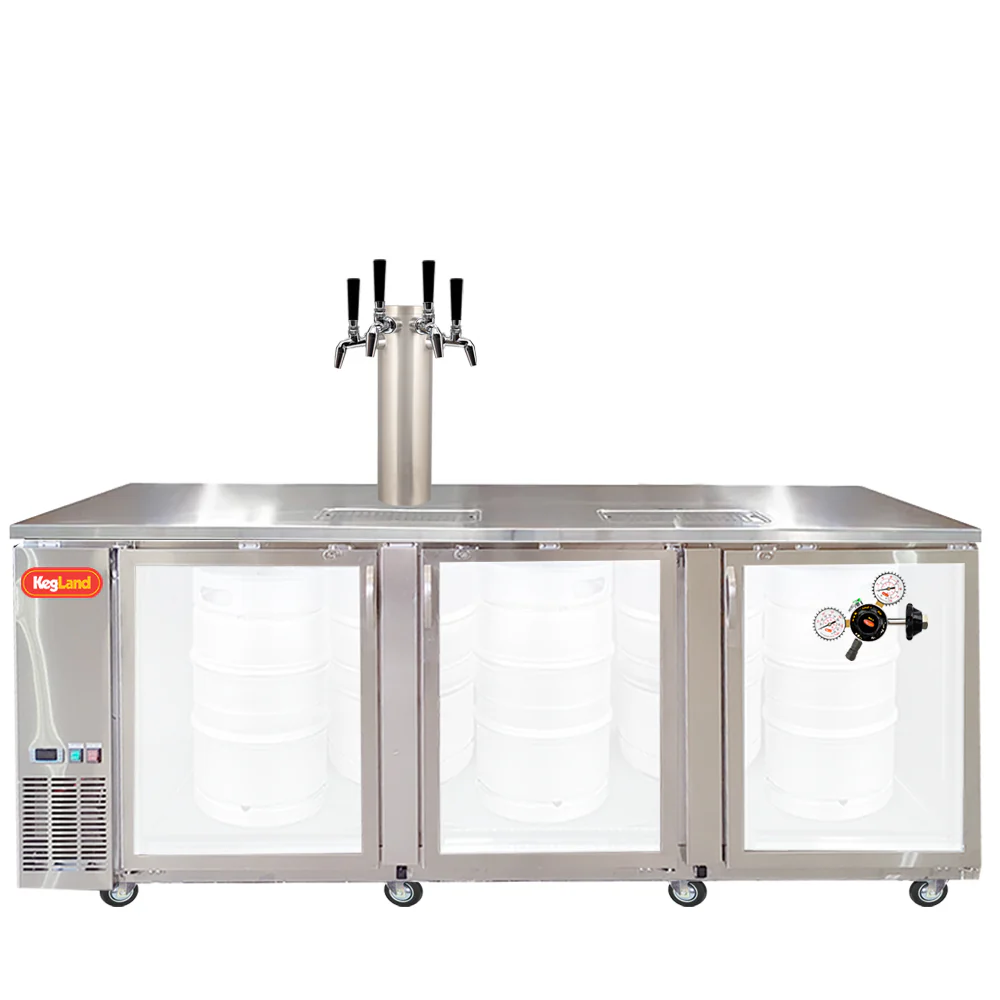

• Four Tap T-Bar Kit: 4 x NukaTaps SS on a Quadruple T-Bar Font Kit

---

A Crucial Final Step: Selecting Your Keg Connectors

Your kit is almost complete! The final step is choosing the right connectors to attach the kegs to your lines. These are sold separately to ensure you only buy what you need.

For Homebrewers (using Ball Lock "Corny" Kegs)

If you brew your own beer, you'll need one gas and one liquid disconnect for each tap. We recommend:

• 1x Gas Disconnect: KL20756 duotight 8mm x Ball Lock Disconnect (Gas)
• 1x Liquid Disconnect: KL20749 duotight 8mm x Ball Lock Disconnect (Liquid)

For Commercial Kegs Only (from breweries)

If you only serve commercial kegs, you'll need a coupler for each tap. Check with your brewery which type they use. The most common are:

• KL43250 A-Type Keg Coupler All-SS with 8mm duotight Push-Fit
• KL43267 D-Type Keg Coupler All-SS with 8mm duotight Push-Fit
• KL43281 S-Type Keg Coupler All-SS with 8mm duotight Push-Fit


For Ultimate Flexibility (serving both Homebrew & Commercial)

To easily switch between your own brews and commercial kegs, use Ball Lock Disconnects with specialised couplers. You'll need:

• The Gas and Liquid Disconnects listed in the Homebrew section (one of each per tap).
• KB10825 Ball Lock A-Type Coupler
• KB10849 Ball Lock D-Type Coupler
• KB10873 Ball Lock S-Type Coupler

---

Do You Need CO2? Choose Your CO₂ Gas Cylinder

For a high-quality, full CO₂ cylinder, elect the size that best suits your needs. These are sold seperately.

• 2.6kg CO₂ Cylinder: A great compact option, perfect for easier portability and tighter spaces.
• 6.0kg CO₂ Cylinder: The best choice for commercial use or busy home bars, offering more than double the capacity for fewer changeovers.

---

Standard Package Inclusions & Premium Components

No matter your configuration, every Grand Deluxe 3 Kegerator is built with premium components for superior performance.

What's in Every Kit:

• Your chosen Grand Deluxe 3 Kegerator Body
• Your chosen Tap & Font configuration
• 1 x KL30670 Type 30 - MK5 Regulator: A high-quality, reliable regulator is included as standard.

New Upgrades Included:

• Durable Dixell Temperature Controller: For rock-solid reliability and precise temperature management.
• R290 Refrigerant: An efficient, eco-friendly gas that provides superior cooling.
• Embraco Compressor: A world-class compressor renowned for durability and performance.

Optional Upgrade: Solid Doors

For maximum insulation and UV protection for your beer, upgrade the standard glass doors to solid doors, available in both Black Matte and Stainless Steel.

For Black GD3's

KL08952 Solid Door (Black) - Left (GD3)
KL08969 Solid Door (Black) - Right (GD3)

For Stainless Steel GD3's

KL32636 Solid Door (Stainless Steel) - Left (GD3)
KL32643 Solid Door (Stainless Steel) - Right (GD3)

---

Specifications & Dimensions

• External: 2300mm (L) x 710mm (W) x 910mm (H) [without 100mm castor wheels]
• Internal: 1970mm (L) x 550mm (D) x 780mm (H)

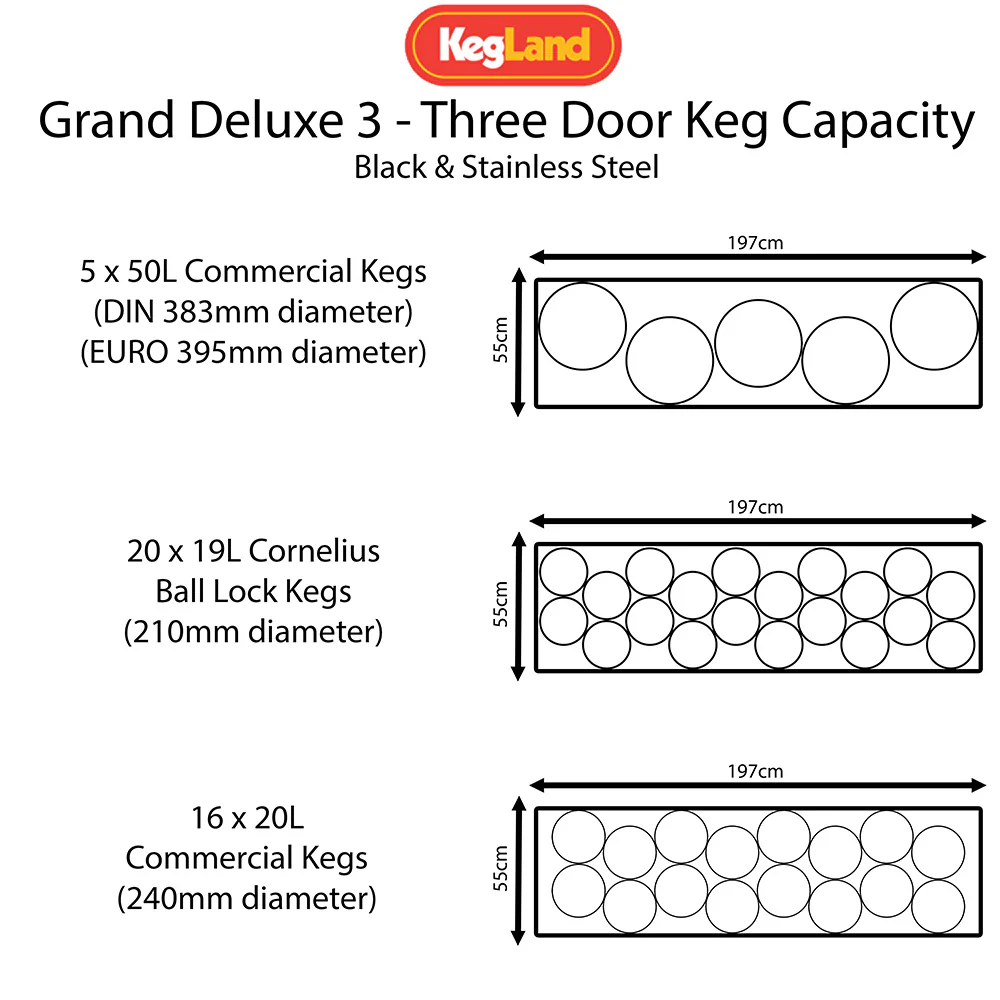

• Keg Capacity: Fits up to 20 x 19L Corny Kegs OR 5 x 50L Commercial Kegs.
• Climate Class 4: Recommended for indoor use up to 30°C and 55% relative humidity.

---

Important Information & Best Practices

Setup, Calibration & Maintenance

This is a commercial-grade appliance. To ensure optimal performance, the unit will require calibration of the temperature and defrost cycles upon setup. As every environment is different, these settings may need periodic adjustment. Regular maintenance is recommended.

Climate & Usage Recommendations (Climate Class 4)

This unit is rated for Climate Class 4, designed for indoor use in ambient temperatures not exceeding 30°C and 55% relative humidity. Using it outside or in hotter/more humid conditions will cause the compressor to run more frequently and may lead to condensation on the glass doors, as they are not heated.

A Note on Commercial Performance

The powerful fans in this unit are designed for rapid and effective cooling in a commercial setting. Please be aware that they are louder than those found in our smaller Series X or Series 4 Kegerator models.

Delivery & Cosmetic Condition

Due to their size, we recommend local pickup from our distribution centre. These handcrafted commercial fridges may have minor cosmetic imperfections like light scratches or scuffs, which can be more apparent on a stainless steel finish. If you opt for delivery, please be aware that while we guarantee the cooling performance, the unit may acquire cosmetic marks from freight handling.
